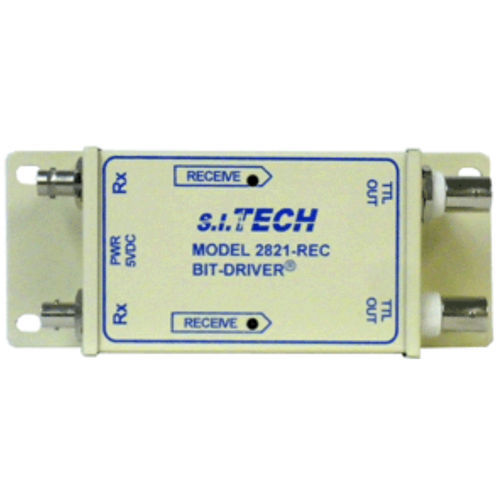

Optical receiver 2821
for fiber optics

optical receiver
optical receiver
Add to favorites
Compare this product


Characteristics

Type
optical
Applications
for fiber optics

Description

Transmission: - Up to 6500 ft. (2 Km) with suitable graded index fiber optic cable or 10 Km using single mode fiber Typical Bit Error Rate: - Better than 10-9 ELECTRICAL SIGNAL OUTPUT FOR RECEIVER Format: - TTL Connector: - BNC Data Rate: - DC - 50 Mbps Output Impedance: - TTL levels into 50-Ohms Input Power: - 9-32VDC 1.5W Max. Optional 5VDC@250mA OPTICAL RECEIVER Wavelength: - 820 nanometers (1300nm and 1500nm option) Minimum Sensitivity: - (BER 10-9) 3 microwatt (-25dBm) @820 nenometers Optical Connector: - ST Operating Temperature: - 0°C to 50°C (optional extended temp for multimode) Size: - 5.125" X 2.125" X 1.0" (13.00 X 5.40 X 2.54 cm) Weight: - 6 oz (170 Grams) TRANSMISSION LINE INTERFACE Operating distance is dependent upon optical fiber core diameter and the cable's optical attenuation. The table below indicates three cables that may be used at any data rate. These cables are available in connectorized assemblies to meet the exact configuration of your application. S.I.Tech offers complete links including fiber optic cable, connectors, cable assemblies, and Bit-Drivers. Model 2821 consist of 2 850nm or 1310nm Receivers or 850nm and 1310 receiver.
