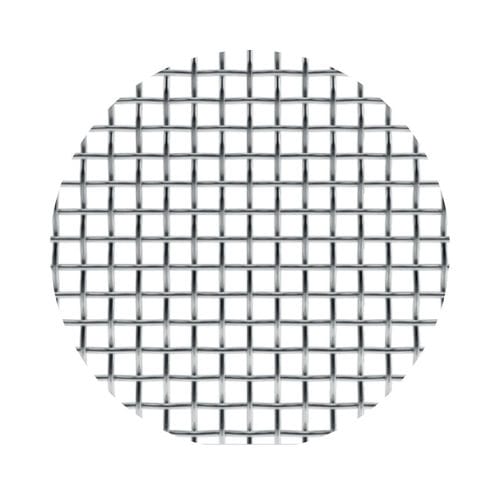

Stainless steel filter element AISI series

fabricliquidknitted wire mesh

Stainless Steel Mesh/Sheet Disc Filters are made of AISI 304/316 stainless steel by Sinterfiltri. They offer a reliable and customized solution for a wide range of industrial applications. Thanks to their unique characteristics, they ensure efficient filtration and long life. Main Features: Porosity: 15 to 2,000 microns Mesh count: 1.5 to 26,000/cm2 Wire diameter: 0.04 to 2 mm Filtration: 10 to 150 microns for mesh Filtration: 300 to 2,000 microns for expanded metal. Resistant to fresh and salt water, saline solutions, sulfates, nitric acid, and phosphoric acid Resistant to thermal shock Resistant to high temperatures (up to approximately 500°C) Good mechanical strength Sinterfiltri produces filters based on customer-specific designs. Experience, knowledge of materials, and manufacturing technologies are combined to design filters to meet your specific needs. FIND OUT if the filter is already manufactured in the "CATALOGUE" range. If you don't find the size you need, write to [email protected] to have the filter best suited to your needs made. BRIEF DESCRIPTION: When we talk about "clearance" in the context of wire mesh filtration, we are referring to the size of the openings or holes in the mesh. It is a fundamental characteristic that determines the size of particles that can pass through the filter and those that are retained.
