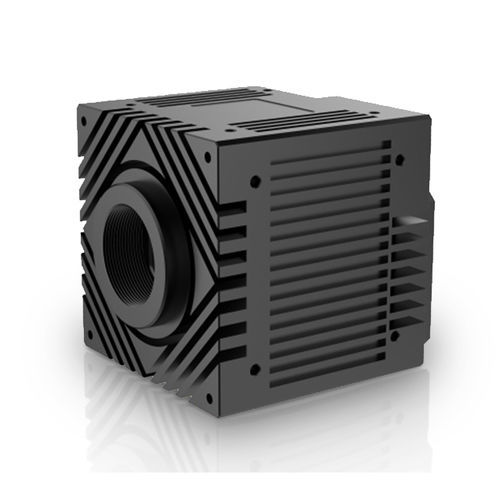

Industrial camera SMI-C10Gi-2592P-01

machine visionmedicaleducation

This series has high definition, low noise, high performance color, easy to install and use, suitable for industrial testing, medical desearch, education, security and other fields. ◆ Reserve a fan interface to effectively control the temperature of the camera;SG ◆The cost of the method of interface matching with capture card is greatly reduced; ◆Using standard 10 Gigabit network interface design, the super-category 6 network cable can realize stable communication, and the cost is greatly reduced compared with the CameraLink interface with a capture card; ◆The farthest transmission distance can reach 100 meters, and the industrial field wiring is no longer restricted; backward compatible with Gigabit network; ◆The effective bandwidth is 1200MByet, which is 10 times that of the gigabit network, which greatly shortens the image transmission time and delay; ◆Support GigEVision, GenICam standard and the same SDK as Gigabit camera, shorten the customer development cycle. Sensor： - 1/2" CMOS Shutter type： - Global shutter Camera type： - Color Pixel size： - 2.5x2.5μm Effective pixels： - 5,000,000 Resolution@Frame Rate： - 2592x2160@121FPS Pixel bit depth： - 12bit Sensitivity： - 1.03x107e-/（（w/m2）-s） GPIO： - Two inputs and two outputs, one configurable input and output supports trigger and flash sync mode Acquisition mode: - Continuous/soft trigger/hard trigger Maximum gain (multiple)： - 20 Exposure time range (ms)： - 0.003~393.2 Filter： - Standard 650nm infrared cut filter Frame buffer： - 256M Bytes User-defined data area： - 2K Bytes Video output format： - Bayer8/Bayer12 Vision Standard Protocol： - GigEVisionV1.2, GenlCam Lens interface： - C port
