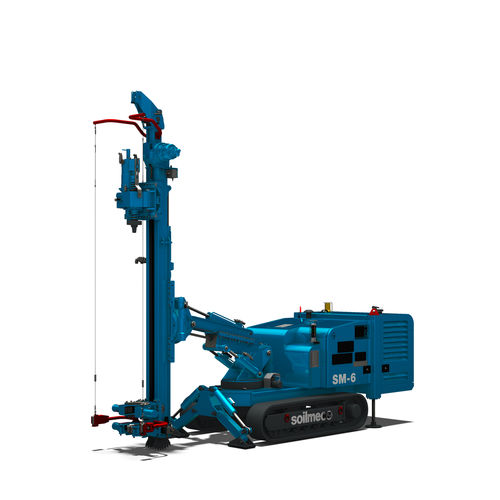

Core drilling drilling rig SM-6

micropilecrawlerrotary

• Steel undercarriage: width 1700 mm and shoes 300 mm • Load sensing hydraulic system. Main pump: variable axial type • Kinematic mechanism: Swiveling boom articulation by slew ring on the base machine enables parallel drilling on the tracks up to +/- 90° • Counter slide: slew ring on mast for +/- 180° rotation • Sliding mast by cylinder • Telescopic boom of 400 mm on base carrier • Modular mast and hoist system by motoreduced • Rotary cradle with side shifting • Full radio remote control Technical data Boom articulation - type - combinated Clamping range - mm - 50-220 Max hoist - kN - 52 Max Torque - daNm - 3400 Track shoe width - mm - 300
