Internal hard disk drive emulator SCSI Flash (CF) RZ29 / RZ26 Storage Works

SCSI3.5"Compact Flash

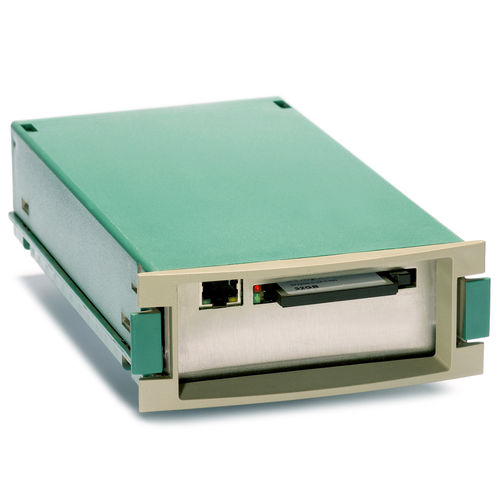

The CF (Compact Flash) based SCSIFLASH drive allows the CF Cards up to 64GB (SLC) and 256GB (MLC) to attach to the SCSI bus. It provides a solid state, drop-in replacement for SCSI hard drives. Network option enabled through RJ45.Support for all models: VAX Station 4000 inc RWZ01, RZ23, RZ26, RZ29 and RZ87Preformatted hard disk emulator for fast and easy system reloadSmall format PCB converts Compact Flash Media to appear as an VAX 4000 SCSI device on a Host’s SCSI bus3.5” form factor PCB which will replace any 3.5” disk drive or larger drives with adaptorWill fit in a 3.5” disk slot using the same mountingsSCSI Host will typically see the device as an VAX Station SCSI disk drive of any emulationBoard is low power, using 5V only, and has an optional add-on display and push button user interfaceMicrocode is field upgradable via integral serial portOptional integration support available if requiredAdditional Ethernet backup and restore capacbility available to replace the traditional manual rotation of media FLASH2GUI - Optional ethernet support for centralised backup & restore capability available removing the need to rotate media. Primary data storage is always written to the CF card. No software change to the host required.
