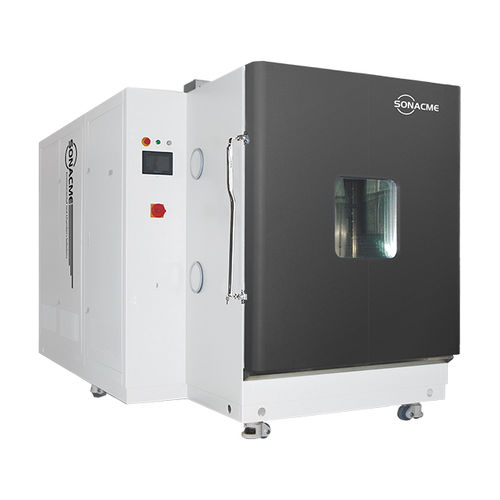

Rapid temperature cycling test chamber SR/xxx/70/25(H) series

climatichumiditytemperature

The rapid temperature change test chambers can set different stress screening temperature change rates: 5℃/Min, 10℃/Min, 15℃/Min, 20℃/Min, 25℃/Min. Temperature humigity cycling stress screening is the use of temperature acceleration techniques (cycle within the upper and lower limit temperature, the product produces alternating expansion and contraction) under the design strength limit of the product to change the external environmental stress. Meet the stress screening of electronic equipment products, MIL-STD-2164, MIL-344A-4-14, MIL-2164A-19, NABMAT-9492, GJB-1032-90, GJB/Z34-516, IPC-9701... etc. Test requirements. The stress screening test of the rapid temperature change test chamber from room temperature is based on MIL-STD-2164 and IEC 60068-2-14. When performing the temperature cycle stress screening test, it needs to start from room temperature, which is the same as the traditional thermal shock test. The experiment is different. Refrigeration System • Compressors equipped with world famous brand such as Tecumseh (France made), Bitzer or GEA BOCK (Germany made). • Shock absorption and noise reduction process,slow down the vibration, protect the compressor. • The new pipe bending technology: The bending process can minimize the connector point and make refrigerant flow more efficiently. • It applies Denmark DANFOSS and Japanese SAGLNOMIYA solenoid valves to improve the overall reliability of the equipment. • MP10 module has motor over-heating protection (with LED indicator), exhaust temperature over-heating protection (requires optional temperature monitoring probe and LED indicator), power indicator, alarm function.
