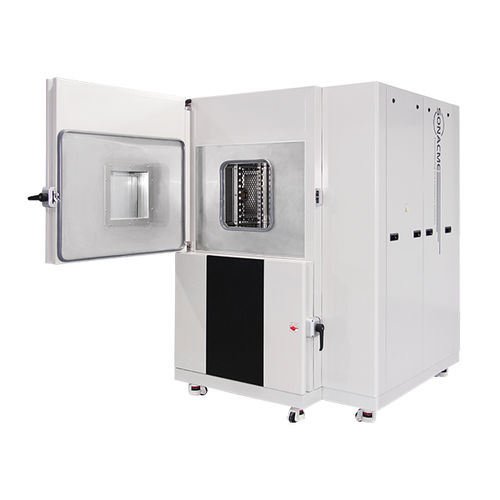

Thermal shock test chamber SS/500/65/3
climatictemperaturefor rapid temperature cycling

Thermal shock test chamber - SS/500/65/3 - SONACME Technology - climatic / temperature / for rapid temperature cycling
Thermal shock test chamber - SS/500/65/3 - SONACME Technology - climatic / temperature / for rapid temperature cycling
Thermal shock test chamber - SS/500/65/3 - SONACME Technology - climatic / temperature / for rapid temperature cycling - image - 2
Thermal shock test chamber - SS/500/65/3 - SONACME Technology - climatic / temperature / for rapid temperature cycling - image - 3
Add to favorites
Compare this product
Go to the SONACME Technology website for more information

Characteristics

Type
climatic
Controlled parameter
temperature
Test type
for rapid temperature cycling, thermal shock, for altitude flight simulation
Product applications
for battery, for electrical equipment, for solar panels, for windows, for composite materials, for vehicles, for automobiles, for test benches, for aircraft, device, for sensors, for materials testing machines, for electronic circuit boards, for motors, for engine, for auto lamp, glass, for wires, for semiconductors
Application domain
for quality control, European standards-compliant, international standards-compliant, for the aeronautical industry, for small parts production
Configuration
floor-standing, compact, modular, vertical, horizontal
Light source
white LED
Protection level
with electronic lock
Options and accessories
with window, with temperature and climatic control, with constant temperature and humidity control, with cyclical temperature/humidity control, with sample preparation, 3-zone
Other characteristics
stainless steel, low-temperature, for high temperatures, automatic, high-capacity, accelerated, thermal, constant, alternating
Capacity

Max.: 1,000 l
(264.17 gal)

Min.: 50 l
(13.21 gal)

Temperature

Max.: 200 °C
(392 °F)

Min.: -65 °C
(-85 °F)

Interior length

350 mm, 450 mm, 650 mm, 960 mm, 1,100 mm
(13.78 in, 17.72 in, 25.59 in, 37.8 in, 43.31 in)

Interior height

400 mm, 460 mm, 500 mm, 650 mm, 900 mm
(15.75 in, 18.11 in, 19.69 in, 25.59 in, 35.43 in)

Interior depth

350 mm, 450 mm, 670 mm, 800 mm, 1,000 mm
(13.78 in, 17.72 in, 26.38 in, 31.5 in, 39.37 in)

External length

1,330 mm, 1,450 mm, 1,650 mm, 1,980 mm, 2,050 mm
(52.4 in, 57.1 in, 65 in, 78 in, 80.7 in)

External height

2,010 mm, 2,050 mm, 2,250 mm
(79.13 in, 80.71 in, 88.58 in)

External depth

1,524 mm, 1,650 mm, 1,900 mm, 2,000 mm, 2,400 mm
(60 in, 64.96 in, 74.8 in, 78.74 in, 94.49 in)

Description

Application area 1. SONACME thermal shock test chamber is designed to provide a rapid transition between hot and cold temperature zones. Provide vertical, horizontal and liquid models. Thermal shock test chambers are used in all industries, including automotive, electronics, aerospace and other industries, to help find product defects in electronic components and product assembly. 2. The thermal shock test chamber is very important to the MIL-STD 883 test standard. With Haoji Technology's LOW GWP (Global Warming Potential) technology, our test room can provide up to 40% energy saving and R-449A refrigerant. Structural Features 1. The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked. 2. The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched. 3. The insulation material is made of polyurethane foam with thicknessof 100mm. 4. The door seal adopts double silicon rubber sealing material. 5. The observation window is 4 layers of tempered glass, the size you can choose by yourself. 6. In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.
