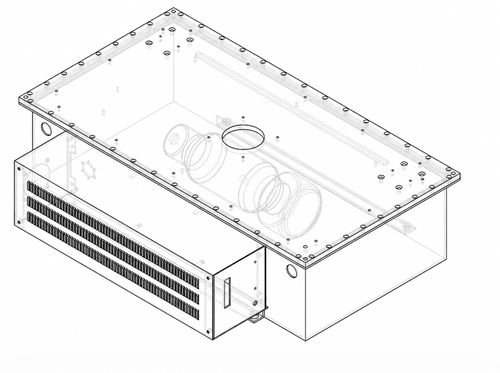

X-ray generator SB-250-3K

Product overview
The SB-250 family of X-ray generators provides up to 250 kV and 750 W output for industrial radiography and inspection applications. Models are available as integrated units within the SB series and as modular units in the XRS series.

Included model

• SB-250-3K

SB-250-3K - Technical specifications

• Max voltage: 250 kV
• Max current: 3 mA
• Max power: 750 W
• Duty cycle: Continuous
• Input power: 120 VAC / 240 VAC
• Minimum focal spot: 1.5 mm
• X-ray tube type: Glass

Related families (overview)

• SB-50 — 50 kV — 50 W — Integrated
• SB-60 — 60 kV — 20 W — Integrated
• SB-80 — 80 kV — 160 W — Integrated
• SB-100 — 100 kV — 50 W — Integrated
• SB-120 — 120 kV — 48 W — Integrated
• SB-160 — 160 kV — 320 W — Integrated
• SB-200 — 200 kV — 800 W — Integrated
• SB-250 — 250 kV — 750 W — Integrated
• XRS-100 — 100 kV — 1.3 kW — Modular
• XRS-120 — 120 kV — 3 kW — Modular
• XRS-125 — 125 kV — 875 W — Modular
• XRS-135 — 135 kV — 675 W — Modular
• XRS-140 — 140 kV — 1.05 kW — Modular
• XRS-160 — 160 kV — 1 kW — Modular
• XRS-180 — 180 kV — 1 kW — Modular
• XRS-200 — 200 kV — 1 kW — Modular
• XRS-250 — 250 kV — 1 kW — Modular

Applications and notes

• Intended for industrial radiography, non-destructive testing (NDT) and material inspection.
• Integrated SB units provide compact deployment; XRS models offer modular configurations for higher power requirements.
• Glass X-ray tube and 1.5 mm focal spot balance resolution and operational lifetime; verify suitability for your inspection resolution needs.
• Continuous duty cycle supports extended inspection tasks; confirm input power compatibility (120 VAC / 240 VAC) during installation.
