Ultrasonic welding machine P 300W

manualtextilefor plastics

Manual ultrasonic cutting machine - Compact and ergonomic

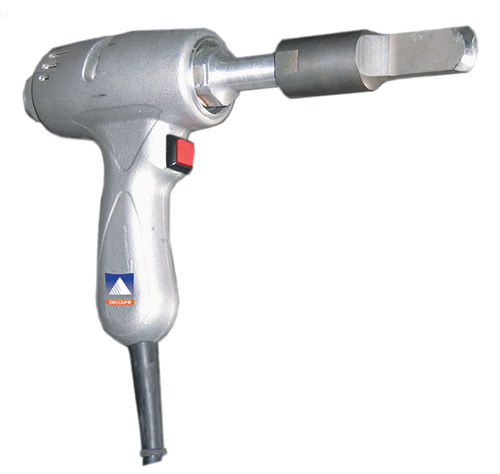

The Ultrasonic Pistol P 300W is a compact, lightweight, and flexible handheld ultrasonic gun designed for cutting operations on plastics or textiles.

Easy change from cutting to welding!
With an easy sonotrode (horn) replacement, users can switch between ultrasonic cutting and welding, using the same device. This versatility makes it suitable for a wide range of applications.

Main Applications

• Ultrasonic shape cutting on various synthetic textiles or plastics
• Ultrasonic spot welding on plastics, ribbons, straps, and more
• Continuous sealing on nonwovens and synthetic textiles

Advantages

• Quick and easy operation, even in hard-to-reach areas
• Clean cuts in a single pass without fraying, burning, or overthickness; edges are sealed and ready for immediate use
• Strong, clean ultrasonic spot welds without the need for glue or staples
• Consistent, resistant, and high-quality results for both cutting and welding

Example Applications

• Manual operations in sun protection, bedding, industry, clothing, ribbons, home furnishing, and more

Flexible Solution

• Easy change from cutting to welding by simple sonotrode/horn replacement
• Quick and easy to use, even in hard-to-reach areas

Spare Parts and Accessories

• Spare parts: use the parts drawing provided with your Pistol ultrasonic cutting device
• Accessories available:
• Glass or steel plate
• 10 m ultrasonic cable (maximum)
• Steel rule for straight cutting
• Other cutting angles on request
• Inertia-reel-assisted system to hang the device when not in use, easing handling operations for operators

Technical Specifications

• Power: 300 W
• Supply: 220 V
• Weight: 1.2 kg
• Standard diameter for spot welding: 18 mm
• Standard cutting angles: 70° or 90°
• Ultrasonic generator: 300 W (with power and time delay adjustments)
• Guarantee: 1 year parts and labor
• Ultrasonic technology: ultrasonic direct cutting and ultrasonic spot welding
