Embossed sheet metal PBD metalfor rooffor wall
Add to favorites
Compare this product
Characteristics
- Type
- embossed
- Material
- metal
- Applications
- for roof, for wall
Description

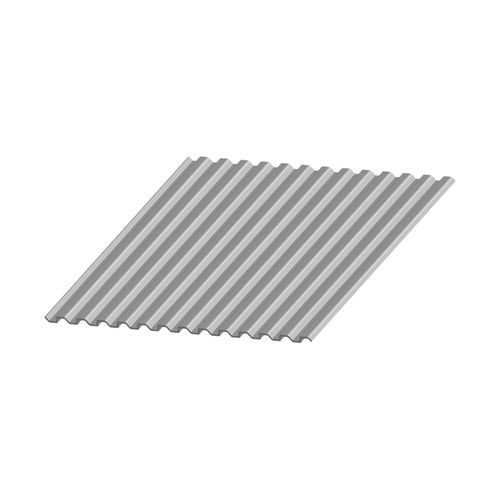

The PBD panel is an exposed-fastened panel system that can be used for roof and wall applications. When used in wall applications, panels can be installed vertically or horizontally. The ribs in the PBD panel are symmetrical from top to bottom, which makes this panel ideal as a roof liner.
Features
Applications: Panel Systems, Roof Systems, Wall Systems, Exposed Fastening Systems
Coverage Width: 32"
Minimum Slope: 3:12
Panel Attachment: Exposed Fastening System
Gauge: 26 (standard); 22, 24, 29 (optional)
Finishes: Smooth (standard); Embossed (optional)
Coatings: Galvalume Plus® , Signature® 200, Signature® 300
Rib Spacing: 2.67" on Center
Rib Height: ⁵⁄₈"
Length: N/A
