electric stacker truck / side-facing seated / transport / double-pallet

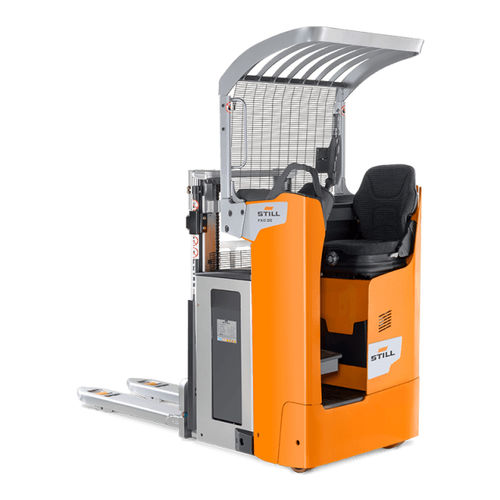

FXD 20



  • Energy:


  • Operator:

    side-facing seated

  • Applications:

    transport, double-pallet, handling

  • Carrying capacity:

    2,000 kg (4,409.2 lb)

  • Lifting height:

    2,844 mm


Handling rate combined with comfort: that is what the FXD 20 double deck high lift pallet truck stands for. It can transport two non-stackable pallets at once. The maximum lifting capacity of up to 2,000 kg coupled with a speed of up to 12 km/h guarantees maximum handling performance. With a mast height of more than 2.3 m and a maximum lifting capacity of up to 1,200 kg on the mast, the FXD 20 is just as versatile as it is powerful. Its particular strengths lie in multishift operation, because with the lateral battery change and battery capacities of up to 625 Ah the FXD 20 is available around the clock.

Optionally, the Li-Ion technology allows for rapid (interim) charging without removing the battery. The optional pedals enable precise manoeuvring in the aisles. The lifting functions are operated with the Joystick 4Plus. Due to the ergonomic design of the joystick fatigue-free operation is guaranteed. Also, the automatic speed reduction when driving around corners and the speed adaptation based on mast height ensure maximum safety.

• Reduced impact when driving over uneven surfaces with cushioned driver’s seat
• Maximum operator comfort thanks to height-adjustable foot plate in the FXD 20 N and FXD 20
• All functions can be easily operated using the Joystick 4Plus without having to keep changing hands
• Ergonomic and intuitive operation: Option of steering wheel or steering knob
