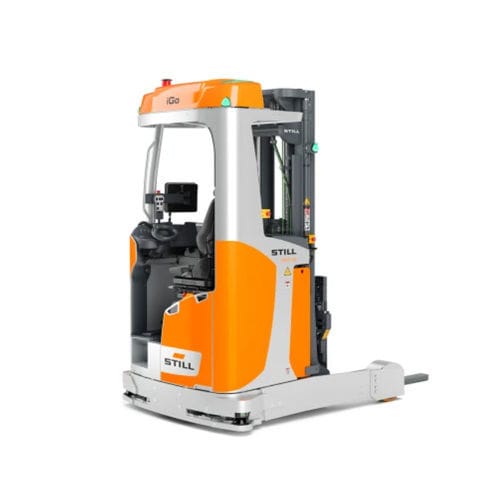

Electric reach truck FM-X iGoside-facing seatedindooroutdoor
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- side-facing seated
- Applications
- handling, pallet, indoor, outdoor
- Other characteristics
- compact, 3-wheel
- Carrying capacity
1,070 kg, 1,550 kg, 2,330 kg
(2,358.9 lb, 3,417.2 lb, 5,136.8 lb)- Lifting height
10,474 mm
(412.36 in)- Overall width
1,302 mm, 1,464 mm
(51.3 in, 57.6 in)- Overall length
2,640 mm, 2,686 mm, 2,830 mm
(103.9 in, 105.7 in, 111.4 in)- Load center distance
625 mm
(24.6 in)- Weight without load
3,440 kg, 3,670 kg, 4,310 kg
(7,583.9 lb, 8,091 lb, 9,501.9 lb)- Axle loading with maximum load front
Max.: 2,570 kg
(5,665.9 lb)Min.: 880 kg
(1,940.1 lb)- Axle loading with maximum load rear
Max.: 5,940 kg
(13,095.5 lb)Min.: 2,760 kg
(6,084.8 lb)- Axle loading without load front
2,280 kg, 2,440 kg, 2,790 kg
(5,026.5 lb, 5,379.3 lb, 6,150.9 lb)- Axle loading without load rear
1,250 kg, 1,330 kg, 1,620 kg
(2,755.8 lb, 2,932.1 lb, 3,571.5 lb)- Height of mast when lowered
2,900 mm
(114.2 in)- Free lift
1,925 mm, 1,950 mm
(75.8 in, 76.8 in)- Overall height with mast raised
7,679 mm, 7,749 mm, 7,849 mm
(302.3 in, 305.1 in, 309 in)- Height to top of overhead guard
2,472 mm
(97.3 in)- Seat height
1,140 mm
(44.9 in)- Length to fork face
1,390 mm, 1,436 mm, 1,580 mm
(54.7 in, 56.5 in, 62.2 in)- Fork carriage width
760 mm
(29.9 in)- Ground clearance under mast with load
50.5 mm
(2 in)- Ground clearance at center of wheelbase with load
50 mm, 70 mm
(2 in, 2.8 in)- Turning circle radius
1,540 mm, 1,710 mm, 1,950 mm
(60.6 in, 67.3 in, 76.8 in)- Travel speed
7.2 km/h
(4.5 mph)- Lifting speed
0.5 m/s
(1.64 ft/s)- Lowering speed
0.35 m/s
(1.148 ft/s)
Description
The automated FM-X iGo reach truck takes efficiency, performance and flexibility to a new level. From wide-aisle warehouses and flow racking to conveyor technology and VNA transfer stations – the FM-X iGo covers the entire spectrum of automated processes with the utmost precision thanks to its innovative pallet positioning system (PPS). Two other impressive features are its compatibility with a wide range of load carriers and its power.
The FM-X iGo effortlessly lifts up to 2,300 kg on the cantilever forks to storage heights of up to 10 metres. And the lean design allows for a working aisle width of less than 3 metres. For maximum process safety and reliable pedestrian protection, the FM-X iGo is equipped with a multi-level safety system with state-of- the-art laser scanners and sensors that fulfils all the requirements of the ISO 3691-4 safety standard. Its performance is as sophisticated as its handling is straightforward due to the smart STILL iGo automation solution, such as plug-and-play commissioning with iGo easy. By the way: iGo easy permits both stand-alone operation and connection to a WMS. And as your automated fleet grows or you want to automate more processes, the scalable software grows with you. It’s that simple.
