Water washing machine 20.4302.08

automaticprocessstainless steel

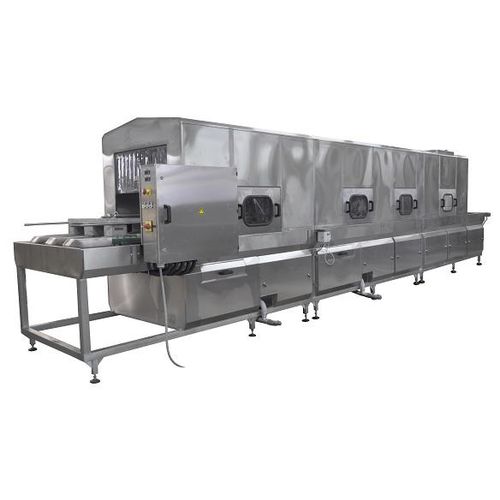

The machine is pass-through tunnel machine and is designed to clean special detachable box pallets. It consists of zones for pre-washing, washPre-washing and washing processes are performed in identical way – by means of centrifugal pumps and adjustable (by hand) nozzles. The washing agent is added manually in the tanks before starting the machine (option – automatic dosing systems). The tanks are equipped with manually cleaned filters for catching the bigger soils. The water in both tanks can be heated by means of electric heaters or a injectors for direct steam. The desired water temperature can be adjusted between 30-60°C via thermostat. For the rinsing is used general water supply. After the rinsing this water is used also for refreshing and additional filling of the main washing tank. In the last zone high pressure blowers and air knives blow off the water from all sides of the products. Because of the different height of the products the position of the upper air knife is adjustable. Before starting the box pallets are disassembled and their parts are sorted (pallet, sides, cover), so that the different types can be washed one after another. The transport is done with plastic chains with adjustable speed. The motor is equipped with sliding connector to prevent eventual injuries to the personnel. The control panel is mounted on the right side. The machine is made of stainless steel 1.4301 (AISI 304) and complies with the Council Directives 2006/42/ЕС and 2006/95/EC, and USDA regulations. ing and rinsing and blowing-off.
