Flow netting DRAINplus

Product overview

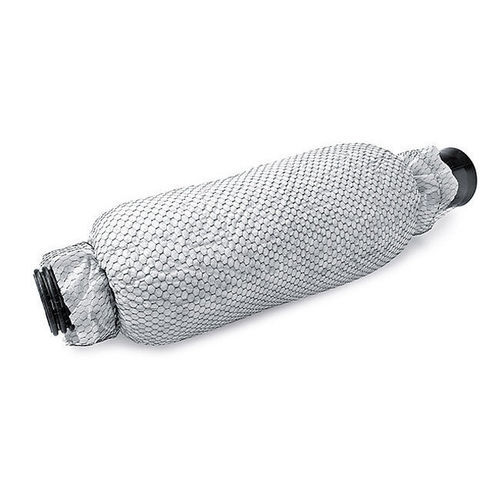

Storopack DRAINplus is a preassembled all-in-one drainage and infiltration system designed to evacuate collected water and enable gradual rainwater infiltration into the ground. Manufactured from recycled material, the product is 100% recyclable. Its construction provides a large absorption surface and flexible installation options.

Benefits at a glance

• All-in-one: Suitable for soil drainage and rainwater infiltration.
• Flexible: Can be installed horizontally or vertically; pipes can be connected lengthwise or as an interconnected layer and bent in any direction for ergonomic installation.
• Simple: Preassembled design enables quick and easy installation.
• Efficient: Large absorption surface — up to 1.25 m² per linear metre — enabling high water intake.
• Resource-efficient: Made from recycled material and fully recyclable.
• Lightweight: Approx. weight per metre: 1.4 kg/m for Ø 300 mm; 2.1 kg/m for Ø 370 mm.

Applications

• Drainage of collected groundwater.
• Gradual infiltration of rainwater into the ground.
• Installation in gravel backfill and similar applications.
• Suitable for installers and tradespeople seeking reduced labour and machinery requirements.

Characteristics / technical specifications

• Preassembled all-in-one drainage and infiltration system.
• Absorption surface: up to 1.25 m² per linear metre.
• Material: manufactured from recycled material; product is 100% recyclable.
• Design: fully closed perforated drainage pipe wrapped in geotextile fabric.
• Installation: can be installed horizontally or vertically; pipes are bendable lengthwise or on an interconnected level and in any direction for ergonomic, quick installation.
• Weight per metre: approx. 1.4 kg/m (Ø 300 mm); approx. 2.1 kg/m (Ø 370 mm).
• Suitable for a variety of drainage and rainwater infiltration applications.
