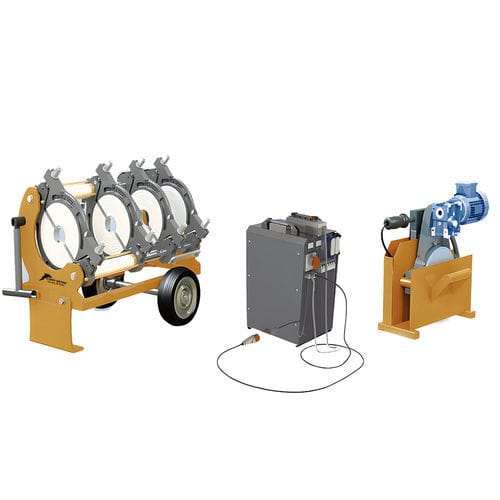

Hydraulic welding machine Sm250

buttmanualbenchtop

SM250 Butt Welding Machine Body The main body supports the plastic pipes to be welded with two movable and two fixed clamps on it, ensuring their fixation and centering. Hydraulic pressure force is applied to the system. With two pistons on the carrier shaft, this force drives the moving clamps forward and backward, providing the movement required for the welding process to take place. SM250 Butt Welding Machine Heater It is the butt welding machine element that prepares the pipe butt surfaces, which are brought to the desired roughness with the trimming process, for the joining process by heating them with the heating plate. The temperature setting of the heater is made by the digital temperature adjustment thermostat on the heater plate. SM250 Butt Welding Machine Hydraulic and Electric Control Unit Electric and hydraulic control unit; The electricity required for the operation of the machine is supplied to the heater and trimmer and the hydraulic pressure to the main machine; The control unit is operated by hand control. There are four buttons and a switch on the hand control. Buttons move the movable grippers forward and backward and the switch operates the trimmer. SM250 Butt Welding Machine Enclosure Box The casing and support box prevents the heater from losing heat and the trimmer protects the heater against external influences (impact, water, etc.) by supporting it.
