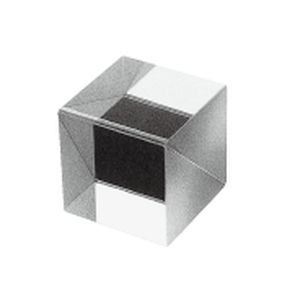

Optical beam splitter TS-07 series

dielectriccubicpartial reflectance

Overview
The TS series cube beamsplitter transmits and reflects incident polychromatic light at θ = 45° with an approximately 50:50 split across the visible range (400–700 nm). Four outer polished surfaces are provided with antireflection coating. Custom sizes and non-standard wavelength ranges can be manufactured on request.

Applications

• Simultaneous observation and imaging systems using two 90° output branches; optical instrumentation and laboratory setups requiring equal beam division

Specifications

• Material: BK-7
• Refractive index: 1.51680 (nd)
• Wavelength range: 400–700 nm
• Transmittance / Reflectivity: 50 : 50
• Chamfering: all circumferences or ridge lines chamfered; slant face with dielectric multilayer coating
• Outer surfaces: optically polished with antireflection coating

Tolerance

• Diameter tolerance: ±0.2 mm
• Angle tolerance: ±3 minutes (3')
• Wavefront aberration (P‑V): Transmitted: λ/4, Reflected: λ/2 (effective range: within 85% including center)
• Surface quality: MIL‑60‑40

Lineup

• TS-0715P / 5×5×5 mm / BK-7 / 10,000 / 11,000 / -
• TS-0716P / 8×8×8 mm / BK-7 / 12,500 / 13,750 / -
• TS-0717P / 10×10×10 mm / BK-7 / 15,000 / 16,500 / -
• TS-0718P / 15×15×15 mm / BK-7 / 24,000 / 26,400 / -
• TS-0719P / 20×20×20 mm / BK-7 / 24,000 / 26,400 / -
• TS-0720P / 22×22×22 mm / BK-7 / 18,000 / 19,800 / -
• TS-0721P / 25×25×25 mm / BK-7 / 20,000 / 22,000 / -
• TS-0721P1 / 30×30×30 mm / BK-7 / 25,000 / 27,500 / -
• TS-0721P2 / 35×35×35 mm / BK-7 / 40,000 / 44,000 / *
• TS-0721P3 / 40×40×40 mm / BK-7 / 40,000 / 44,000 / *

Technical characteristics

• Material: BK-7
• Refractive index: 1.51680 (nd)
• Wavelength: 400–700 nm
• Transmittance / Reflectivity: 50:50
• Chamfering and coatings: all circumferences or ridge lines chamfered; slant face with dielectric multilayer coating; outer surfaces antireflection coated
• Tolerances: diameter ±0.2 mm; angle ±3'
• Wavefront aberration: T: λ/4, R: λ/2 (within 85% effective area)
• Surface quality: MIL‑60‑40
