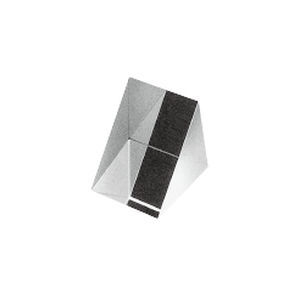

Triangular prism TS-07 series

BK7

Product overview
Right-angle (90°) optical prisms of the TS-0700P series. These prisms reverse left/right image orientation and deflect incident light by 90°; combined roof surfaces produce a 180° horizontal image reversal. Standard items are supplied uncoated; anti-reflection or metallic coatings are available on request.

Applications

• Binoculars and optical viewfinders
• Microscope eyepieces and imaging paths
• Side observation, inspection or illumination systems
• Integration close to camera lenses and light guides/fibers

Additional information
If a prism is placed within a focusing beam, the image focus shifts by approximately one-third of the prism dimension for BK7 material. Using the prism in the imaging path can increase spherical aberration and field curvature; account for this in optical design.

Specifications

• Material: BK-7 / S.F.S.
• Refractive index (standard value): BK-7: 1.51680 (nd), 1.51872 (ne); S.F.S.: 1.4585 (nd), 1.4681 (ne)
• Design wavelength: 587.6 nm (d-line)
• Tolerances:
  • Angle: ±3'
  • Pyramid error: ±3'
  • Surface flatness: λ/4
  • Surface quality: MIL60-40

Standard price list (prices without tax)

• TS-0700P | 2×2×2 mm | BK-7 | 6,000
• TS-0701P | 3×3×3 mm | BK-7 | 5,000 (made to order when out of stock)
• TS-0702P | 5×5×5 mm | BK-7 | 3,300
• TS-0703P | 10×10×10 mm | BK-7 | 3,000
• TS-0704P | 13×13×13 mm | BK-7 | 4,000 (made to order when out of stock)
• TS-0705P | 15×15×15 mm | BK-7 | 4,500
• TS-0706P | 17×17×17 mm | BK-7 | 3,500 (made to order when out of stock)
• TS-0707P | 20×20×20 mm | BK-7 | 5,500
• TS-0708P | 22×22×22 mm | BK-7 | 5,500
• TS-0709P | 25×25×25 mm | BK-7 | 6,000
• TS-0710P | 30×30×30 mm | BK-7 | 8,500
• TS-0711P | 35×35×35 mm | BK-7 | 22,000
• TS-0712P1 | 40×40×40 mm | BK-7 | 24,000

Coating options (examples, prices without tax)

• TS-0702PAL | 5×5×5 mm | BK-7 | 7,000 | AL+SiO coating
• TS-0703PAL | 10×10×10 mm | BK-7 | 6,500 | AL+SiO coating
• TS-0705PAL | 15×15×15 mm | BK-7 | 7,000 | AL+SiO coating
• TS-0707PAL | 20×20×20 mm | BK-7 | 8,000 | AL+SiO coating
• TS-0709PAL | 25×25×25 mm | BK-7 | 8,500 | AL+SiO coating

Lead time
Items shown are normally stocked. If out of stock, maximum lead time is 45 days.
