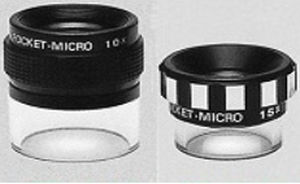

Monocular magnifier TS-2-10A
portablelightwork

Add to favorites

Compare this product

Characteristics

Product overview

Compact pocket micro loupe designed for circuit board inspection and verification of printed characters.
Pocket-size and lightweight for on-site portability and immediate use.
Acrylic lighting tube provides bright illumination including peripheral areas for consistent visibility.

Details

Intended for visual inspection tasks at production lines, repair benches and field service.
Ergonomic pocket form factor for quick handling and transport.
Acrylic lighting tube ensures even illumination across the field of view, improving detection of fine defects near edges.

Specification table

Model series: TS-2 series
TS-2-10A: Magnification 10x; Outer diameter 43 mm; Effective length 48 to 55 mm; Field of view 32 mm; Working distance 25 mm; Lens construction 2G4E; Weight 65 g; Price w/o tax 6,000 JPY; Price w/tax 6,600 JPY.
TS-2-15: Magnification 15x; Outer diameter 38 mm; Effective length 25 to 30 mm; Field of view 24 mm; Working distance 7.52 mm; Lens construction 3G4E; Weight 40 g; Price w/o tax 7,000 JPY; Price w/tax 7,700 JPY.
Illumination: Acrylic lighting tube for bright peripheral illumination.
Typical applications: Circuit board inspection, printed-character inspection, on-site visual checks.

Notes

*TS-2-10A and TS-2-15 will be obsolete once all stock is cleared. TS-1-10A and TS-1-15 are the successor models.

Technical specifications

Series: TS-2
Materials: Acrylic lighting tube; optical glass lens elements.
Operating conditions: Suitable for workshop and field use; handle with care to avoid lens contamination.
