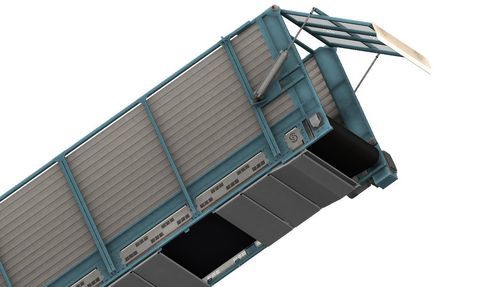

Storage hopper SBC

for bulk materialsfor wastewith belt conveyor

Overview
The belt-on-rollers storage hopper type SBC is designed for storing bulk materials, primarily in waste treatment plants (selective collection, municipal waste, industrial waste). This conveyor can also be used for other heavy-duty industrial conveying applications. Its tubular frame, modular design and available options allow each hopper to be configured individually for optimal use according to material volume, particle size and bulk density.

Key features

• Robust construction suitable for abrasive materials.
• Standardized spare parts to simplify maintenance.
• Modular design enabling configurable lengths, widths and options.
• Scalable storage capacity according to application.

Typical applications

• Waste treatment plants (selective collection, municipal waste, industrial waste).
• Heavy-duty industrial conveying for other bulk materials.

Available options

• Scraper
• Brush
• Stone trap
• Stainless steel module

Customization / information required for configuration

• Length (configurable on request).
• Belt width (common options: 600 mm, 800 mm, 1000 mm, 1200 mm, 1600 mm).
• Particle size distribution and nature of the material to be conveyed.
• Required throughput (expressed in t/h or m³/h).
• Installation and environmental constraints for integration into the line.

Technical characteristics / specifications

• Type: belt-on-rollers storage hopper, model SBC.
• Structure: tubular frame.
• Design: modular, configurable in length and width.
• Available belt widths: 600 mm, 800 mm, 1000 mm, 1200 mm, 1600 mm.
• Adaptation: designed for abrasive materials; standardized spare parts.
• Mechanical options: scraper, brush, stone trap, stainless steel module.
• Sizing parameters to provide: particle size, bulk density, throughput (t/h or m³/h).
