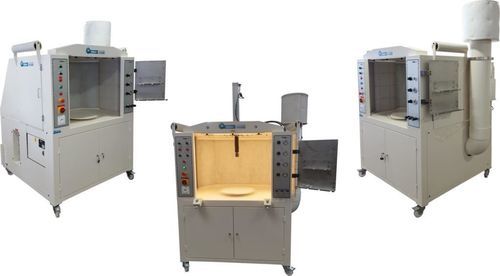

Closed circuit paint booth SA 256

for metal fabricationfor partsfilter

Description
This SUTEAU-ANVER coloring cabin is designed to perform various spray-finishing operations. It enables secure application of color by gun on edges or full surfaces and allows simultaneous use of different spray guns with independent settings and pressures.

Strong points

• Homogeneous, regular finish
• Compact workstation integrating the equipment required for finishing processes

Technical features

• Coloring cabin in painted steel sheet RAL 9001
• Overall dimensions: 1500 x 1350 x 1850 mm
• Working area (W x D x H): 900 x 800 x 900 mm
• "Paint-stop" filter installed in a U-shaped frame; exhaust filters housed in a rear drawer
• Integrated fan with discharge into a special filter with extractable frame
• 4 braked castors
• Lighting on both sides and above
• 3 gun outlets with regulation and quick coupling

Options

• Suction inverter
• Removable manual rotating plate Ø 300 mm with pneumatic anti-rotation
• Electric height adjustment, stroke 200 mm
• Vertical vice with pneumatic clamping and manual rotation

Additional information
A wide range of spare parts is available and kept in stock.

Characteristics / Technical specifications

• Model: SA 256
• Cabin finish: painted steel sheet (RAL 9001)
• Overall dimensions: 1500 x 1350 x 1850 mm
• Working area: 900 x 800 x 900 mm
• Filtration: "Paint-stop" filter in U-shaped frame with rear drawer discharge
• Ventilation: integrated fan discharging into special extractable-frame filter
• Mobility: 4 braked castors
• Lighting: on both sides and above
• Gun interfaces: 3 outlets with regulation and quick coupling
• Available options: suction inverter; removable rotating plate Ø300 mm with pneumatic anti-rotation; 200 mm electric height adjustment; vertical pneumatic vice with manual rotation
