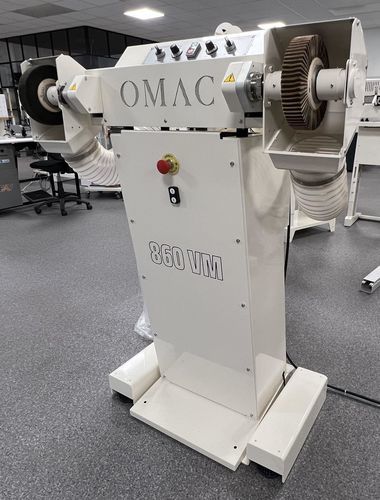

Leather polishing machine OMAC 860 VM

industrialfinishingbuffing

Description
The OMAC 860 VM (860N) is a vertical brushing-polishing machine designed for brushing and polishing leather goods, footwear and small accessories. It integrates two independent heads with dedicated motors and individual high-capacity suction for each head. Speed is adjustable from 2,000 to 4,000 rpm and temperature control reaches up to 150°C for consistent finishing results in industrial production.

Applications

• Hand bags, suitcases, wallets and small leather goods
• Shoes, sandals and saddlery
• Phone and tablet cases, eyeglass cases and holsters
• Decorative interior elements for cars and boats, furnishing accessories
• Watch straps and other leather accessories

Key features

• Two heads with independent motors and speed variators (2,000–4,000 rpm)
• Independent high-capacity suction for each head
• 4 die holders allowing four dies ready for the required temperature
• Double foil support system to transfer two different foils on a single print
• Capability to mount up to 4 different foils; programmable foil unwinding
• PLC control with programmable and savable work cycles
• Micrometric regulator for piston stroke
• Operation by pedal or bi-manual push buttons
• Safety bars and Ethernet port for network connection
• Table mounted on wheels for easy movement

Technical specifications

• Machine type: Vertical brushing-polishing machine
• Model designation: OMAC 860 VM (860N)
• Heads: 2 heads with two independent motors
• Motor control: Independent motors controlled by drive with speed variators
• Speed range: Adjustable from 2,000 to 4,000 rpm
• Suction: Independent suction system for each head (high-capacity)
• Temperature control: Adjustable up to 150°C
• Tooling: 4 die holders (simultaneous use)
• Foil handling: Double foil support; up to 4 different foils; programmable unwinding
• Control: PLC with programmable and savable work cycles
• Stroke control: Micrometric regulator for piston stroke
• Operation modes: Pedal or bi-manual push buttons
• Safety: Safety bars
• Connectivity: Ethernet port for network connection
• Mobility: Table mounted on wheels to facilitate movement
