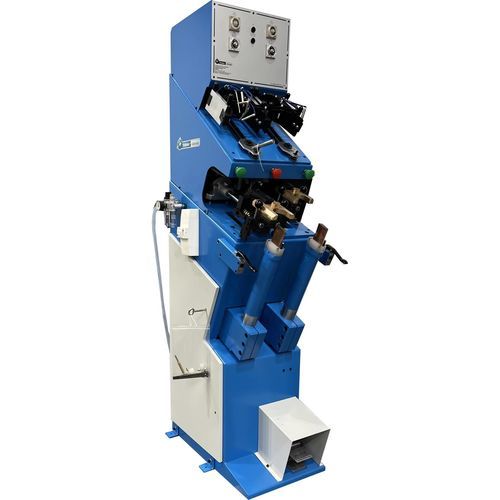

Single station molding machine SA 489 TSM GIB
Add to favorites
Compare this product
Characteristics
- Type
- single station
Description
Product description
These premoulding and reactivating stations have been offered since the company's foundation. Designed for footwear manufacturers (women’s, men’s and children’s ranges), they perform reactivating, premoulding and complete flanging of the lasting margin. Machines are supplied with moulds and pads suited to the selected models and can be configured for children, women, men, boots, sandals and KNEIPP models.
Production capacity: 800–1400 pairs per 8 hours. Common footprint: 700 × 500 mm; height: 1 300 mm (408/409 series) or 1 750 mm (489 series). Installed power and air consumption vary by model.
Options
Technical overview
These premoulding and reactivating stations have been offered since the company's foundation. Designed for footwear manufacturers (women’s, men’s and children’s ranges), they perform reactivating, premoulding and complete flanging of the lasting margin. Machines are supplied with moulds and pads suited to the selected models and can be configured for children, women, men, boots, sandals and KNEIPP models.
Production capacity: 800–1400 pairs per 8 hours. Common footprint: 700 × 500 mm; height: 1 300 mm (408/409 series) or 1 750 mm (489 series). Installed power and air consumption vary by model.
Options
- Curve on request
- Additional reactivating station
- Wide range of spare parts available and in stock
Technical overview
- Models available: 408 TS, 408 TM, 408 TSM, 408 TSMP, 409 G, 409 GP, 409 K, 489 TSMG, 489 TSMGB.
- Production capacity: 800 to 1400 pairs in 8 hours.
- Applications: suitable for children, women, men, boots, sandals and KNEIPP models.
- Supplied with moulds and pads adapted to the selected models; customization on request.
- Footprint (depth × width): 700 mm × 500 mm (all models).
- Height: 1 300 mm for 408 and 409 series; 1 750 mm for 489 series.
- Net weight (examples): 408 TS = 85 kg; 408 TM = 90 kg; 408 TSM = 95 kg; 408 TSMP = 110 kg; 409 G = 120 kg; 409 GP = 130 kg; 409 K = 130 kg; 489 TSMG = 300 kg.
- Gross weight (examples): 408 TS = 140 kg; 408 TM = 145 kg; 408 TSM = 150 kg; 408 TSMP = 165 kg; 409 G = 175 kg; 409 GP = 185 kg; 409 K = 185 kg; 489 TSMG = 370 kg.
- Installed power: from 0.4 kW to 1.4 kW depending on model (examples: 0.4 kW for some 408/409 variants; 1 kW for selected 408 variants; 1.4 kW for 489 models).
- Compressed air consumption: from 1.6 m3/h (408 variants) up to 4.6 m3/h (489 TSMGB).
- Heated moulds: available on many 408 variants and on 489 variants.
- Heated backpart (conformers): available on 408 TS, 408 TSM, 408 TSMP and on 489 models.
- Timer: fitted on 408 TM, 408 TSM, 408 TSMP and on 489 variants.
- Pulling pincers: available on 408 TSMP and 409 GP.
- Refrigerated backpart moulds: available on 409 G, 409 GP, 409 K and on both 489 variants.
- Semi-flanging: available on 409 G, 409 GP and 489 TSMG.
- Stitching down: available on 409 K.
- Complete flanging: available on 489 TSMGB.
