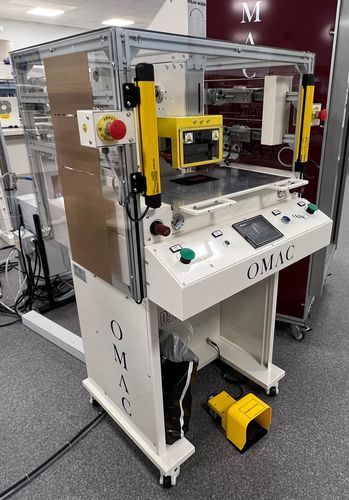

Manual hot foil stamping machine OMAC 993 DS T4 PRO

for leather

Overview
The pneumatic foil stamping machine OMAC 993 DS T4 PRO is designed for hot stamping on leather, imitation leather and other synthetic materials. It supports single or sequential stamping with or without foil transfer, making it suitable for leather goods and footwear production.

Technical data

• Model: OMAC 993 DS T4 PRO
• Type: Pneumatic foil stamping machine
• Pressure: 700 kg
• Working area: 510 x 320 mm
• Temperature: adjustable up to 150°C

Key features

• 4 die holders allowing four dies simultaneously at the required temperature
• Double foil support system to apply two different foils on a single print
• Possibility to mount up to 4 different foils
• PLC control for programmable and savable working cycles
• Programmable foil unwinding
• Micrometric regulator for piston stroke
• Safety bars
• Operation by pedal or bi-manual push buttons
• Ethernet port for company network connection
• Suction system to hold material during stamping
• Table mounted on wheels for easier movement

Applications & support

• Recommended for leather goods, footwear and related sectors
• Demonstration video available
• Full OMAC range and spare parts available
• Customized production start-up supported by trained technicians
