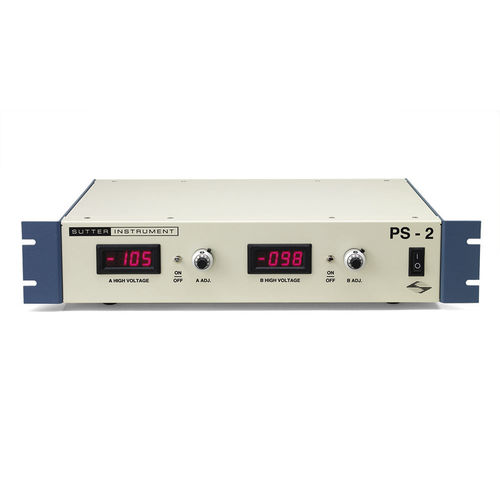

Rack-mount power supply PS-2 & PS-2/LV

DC/DCdual-outputlinear

The PS-2 and PS-2/LV are Sutter PMT power supplies sold with the Sutter MOM®. They are also available to those who need dual power supplies for either their own scanning microscope or other projects that need PMT power supplies. The PS-2 is a dual high voltage supply specifically designed to be used with the Hamamatsu R6357 multi alkali PMT but applicable to other similar PMTs. The PS-2/LV was originally designed to be used with the Hamamatsu H10770PA-40 PMT Module, but is applicable to many other similar PMT modules that have the high voltage supply built into the device and only require a low voltage supply and a control voltage to set gain. The PS-2 and PS-2/LV have additional outputs for running preamplifiers and other associated circuitry. Both are dual supplies with discrete on/off switches, gain controls and voltage displays for the two PMTs attached. These two models are manually controlled, which is convenient for those designing their own scopes; there is no need to worry about PC control of various parameters. Just plug in the PMT and power up! To keep generated noise at a minimum, linear power supplies are used to generate all low voltages and to power the high voltage supplies. APPLICABLE PMTs PS-2 Hamamatsu R6357, R3896, R3811 PS-2/LV Hamamatsu H10770PA-40, H10770PB-40, H10770PA-50 as well as gated modules like H11706-40 and H11526-110 Please call Sutter for applicability of the PS-2 and PS-2/LV to other PMTs and PMT modules
