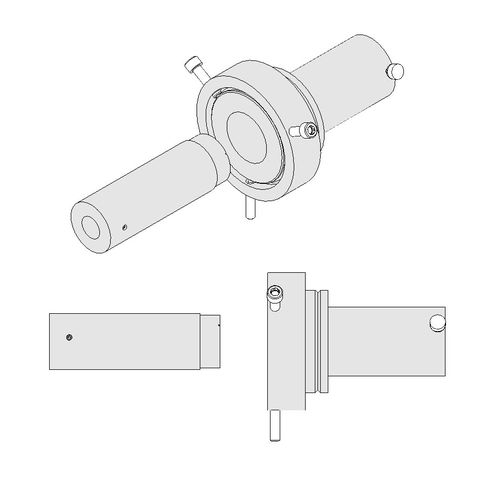

Microscope adapter
optical

microscope adapter
microscope adapter
Add to favorites
Compare this product


Characteristics

Type
optical
Applications
for microscopes

Description

Lambda Filter wheels Excitation adapters (suffix EC) include all components necessary for mounting our filter wheels between the microscope lamp housing and excitation port. Please select adapters with a prefix of 10 for wheels with 25 mm apertures, and a prefix of 32 for wheels with a 32 mm aperture. Lambda 421 / 721 / OBC Lambda 421, 721 and OBC Beam Combining Systems only require a light guide adapter (prefix LG). Lambda LS and Lambda HPX-L5 It is recommended that the Lambda LS be used with the optional LLG (Liquid Light Guide) and a light guide adapter (prefix LG). Lambda DG-4/DG-5 PLUS (discontinued) The Lambda DG-4/DG-5 PLUS will only require a light guide adapter (prefix LG). Large Format Light Guide Adapter The large format light guide adapter (suffix LF) is necessary when a demagnification lens is present in the emission path to eliminate vignetting in the camera. This adapter is also recommended for those customers wishing to eliminate vignetting in the eyepiece. Lambda VF-5™ / VF-1™ / VF-10 / VF-1™ Edge Please phone Sutter to discuss your microscope and/or mounting requirements. SmartShutter® The SmartShutter® can be mounted on the microscope excitation and transmitted light ports using our standard adapters. For easy reference: IQ25 Excitation - use adapters that begin with 10 IQ35 Excitation - use adapters that begin with 32 IQ25 & IQ35 Transmitted light - use adapters ending with TL Optical Decks Optical deck platforms are used to access the infinity space of the Olympus IX3 microscope and provide a mounting surface for optical and other elements. The Sutter 32 mm filterwheel (part# LB10-W32-Y73) can be mounted directly onto the deck.

Catalogs

No catalogs are available for this product.

See all of SUTTER INSTRUMENT‘s catalogs
