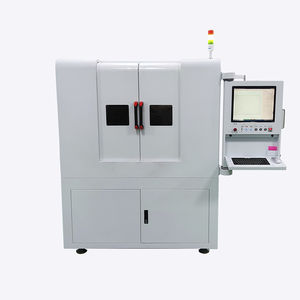

PCB marking machine

CO2 laserindustrialfor electronic components

In-Line machine designed for printing letters, barcodes (1D & 2D), serial numbers, and lot more. Conveyor unit is designed to be highly accurate with high speed achieved by X-Y servo motor. Semi-permanent and it has no replacement parts. Average working time 30,000 hours (MTBF) The system is specially designed for laser marking of printed circuit boards. The unit can be used both as part of a conveyor line and as a stand-alone machine. Thanks to the use of a laser with a mirror scan, it is possible to achieve a large marking area up to 350×350 mm without the need for separate servo drives to move the laser. This laser design guarantees high speed marking of a large number of printed circuit boards. The text / type of marking and its position are easily programmed using the PC-based software supplied with the marker. Optionally, to enable marking on double-sided PCBs, the unit can be equipped with an inverter for flipping the PCB. Features Marking text, 2D barcodes, graphics. Large marking area. Quick changeover of the installation. PC based control. Uninterruptible power supply. Fixing the PCB along the edge. Options Automatically change the conveyor width. Built-in inverter for working with double-sided PCBs. Verification of applied codes using the built-in camera. Connecting to a network database. Built-in filtration system to remove laser fumes.
