Recycling sorting system Moder R

roboticfor bottlesindustrial waste

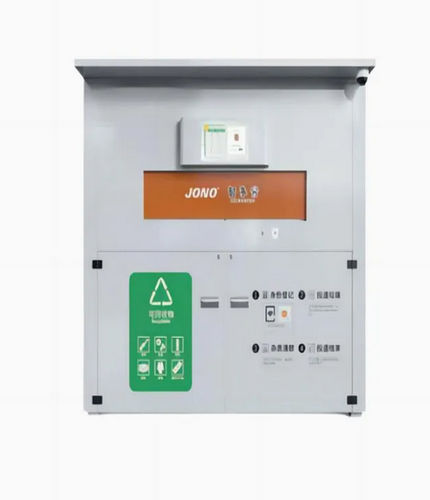

Product Description E-sort series supervision robot Model R is an intelligent equipment used for collecting recyclable waste. Residents can operate the equipment by scanning the code, using their mobile phone number, or facial recognition. They can then put the recyclable waste into the bin, and the equipment will automatically identify and weigh the waste. Residents can withdraw the revenue they earn from the waste recycling directly into their WeChat wallet. The E-sort series supervision robot Model R can promote the reduction of other waste and maximize the collection of recyclable waste, thereby improving the social utilization rate of renewable resources. Technical Data Model Dimension Power Accuracy Weight Bin Volume RSS 1100*1000*1910 mm 260W ≥95% 320KG 0.71m³ RSM 2230*1215*2160 mm 300W ≥95% 600KG 1.60m³ RSL 2400*2200*2300 mm 300W ≥95% 1000KG 4.32m³ The above data is for reference only, the sorting rate and output will be different depending on the incoming materials, please refer to the actual situation. Features Accurate weight accounting: E-sort is equipped with a high-precision weighing sensor to ensure accurate weighing of recyclables. Improved resource recycle rate: Supports small amounts and small pieces waste collection to reduce other waste volume and improve resource recycle rate. 24-hour Operation: 24-hour operation, easy installation, multi-point installation. Sucessful Projects By 2018, JONO has undertaken more than 80+ EPC Projects, which are distributed in more than 40 cities. Our equipment is capable of handling more than 50,000 tons of waste every day. Through persistence and accumulation, we have the proprietary knowledge of total solutions in eight segments, including Municipal Solid Waste (MSW), organic waste, decoration waste, construction waste, recyclables, bulky waste, industrial waste and landfill waste. Example Project - Singapore: Location: Singapore Application: Municipal Solid Waste Capacity: 600T/D This project with the treatment capacity of 600t/d is set for a fine sorting of MSW before they were sent to the CFB (circulating fluidized bed) for incineration. Specifically, JONO introduces the Lindner shredding technology and adopts two-stage shredding process in this project to shred the combustible materials into 80 mm fuel (SRF) so as to enhance the complete combustion rate and mitigate the pressure of treating the exhaust gas. Besides, the mechanical sorting process is also applied in this project to sort out ferromagnetic metals, in-combustibles (glass, stone, ash, etc.) and combustibles. The first pilot plant at Singapore to treat the non-source sorted waste, it includes pre-treatment, bio-drying and post-treatment, within the pre-treatment, HDPE, LDPE,PP and MIX PET will be sorted out, the remains will be sent to bio-drying box, after 8-9days, the water content will be reduced from 45% to 25%. After the post treatment, ferrous, non-ferrous and inert could be separated. Eventually the calorific value of RDF will be increased from 1000kcal/kg to 3800kcal/kg, which could reach the EU standard Class III. This MBT plant is focusing on recycling and RDF production, a good reference case for the idea of "waste to value". Example Project - Vietnam: Location: Vietnam Application: Municipal Solid Waste Capacity: 1,000T/D Mixed MSW is a general term for recyclable waste, organic waste, hazardous waste, combustible waste, etc. Jono has independently developed the MSW mechanical biological treatment (MBT) technology, and launched the automatic disposal scheme of waste classification and treatment smart factory. After the intelligent separation of mixed MSW, the disposal path for products includes: Aerobic/Anaerobic fermentation to produce high-quality biological fertilizer; plastic granulation; production of high calorific value refused derived fuel RDF. About JONO JONO was founded in 2006 and is located in Wujiang District, Suzhou. The company has a floor area of 25,000 square meters, more than 80 design researchers, more than 200 employees and more than 150 patents. It is a new landmark of Wujiang enterprise, also a national high-tech enterprise, has been rated as a waste sorting leader for four consecutive years by the industry association. Technical Specifications / Features Model: Moder R Condition: New Certification: CE Automation: Automatic Screw: None Treatment: AI sorting Color: white, orange Accuracy: ≥95% Transport Package: Polywood Specification: 320kg Trademark: JONO Origin: Jiangsu, China HS Code: 84798999 Customization: Available After-sales Service: Instruction for Commissioning and Maintenance Warranty: 1 year
