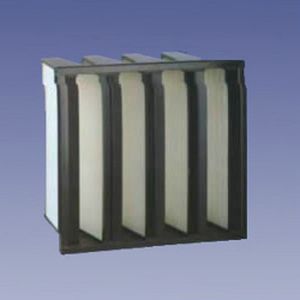

Air filter Z(G)M
pocketfor clean roomsfor air conditioning

air filter
air filter
Add to favorites
Compare this product


Characteristics

Designed for
air
Filtration element
pocket
Applications
for clean rooms, for air conditioning
Material
synthetic fiber
Other characteristics
high-efficiency
Operating pressure

Min.: 40 Pa (0.006 psi)

Max.: 270 Pa (0.039 psi)

Flow

Min.: 1,250 m³/h (44,143.333 ft³/h)

Max.: 4,500 m³/h (158,916 ft³/h)

Description

Application : Air conditioner Systems in clean room business house and industry ventilation Type:Rigih compact filter Frame:polypropylene Sealant:polyurethane Media:superfine glass fibre paper or suoperfine synthetic fibre paper Efficiency En 779:F6(60-80%),F7(80-90%),F8(90-95%),F9(>95%), Y10(>95%) Temperature:90°C maximum in continus service Moisture resistance:<100%RFI Temperature:70°C maximum in continus service Suggested Maximum pressure drop:600 Pa
