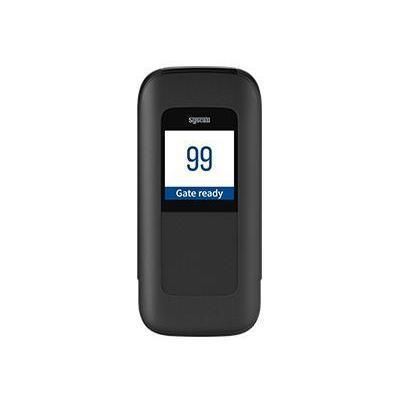

Wireless receiver TGP-200R

FSKnotificationalert

Description

• Advanced paging system to streamline communication with truck drivers in logistics and distribution centers.
• Notifies drivers of the gate or area to approach when loading/unloading is ready.
• Compact pagers allow drivers to remain in their vehicle while waiting.
• Each pager receives a location number plus one of four preset messages simultaneously.
• Rechargeable Li-Polymer battery provides approximately 8 hours of operation on a full charge.
• Available in sets of 10 or 20 pagers to match site requirements.

Features

• Full-color TFT display
• Out-of-range alert to indicate communication loss
• LED indicators for charging status (Red: charging, Blue: charged)
• Reversible charging orientation on TGP-200R for easy placement
• Detachable rear case with magnet for easy cleaning of the charging socket
• Non-slip base for secure placement and handling
• Compatible with Truck Driver Paging System (TP-2000T transmitter, SRT-8200T repeater)

Benefits

• Delivers immediate, unambiguous notifications to drivers
• Simplifies gate assignment and driver direction for office staff
• Supports improved throughput and operational efficiency
• Reduces idle time and waiting-related delays

System Map

• Issue a pager to the truck driver at arrival.
• Send the gate/area number using the transmitter.
• Return the pager when the operation is complete.

Product Specification
Dimension: TGP-200R : W47 x L102 x H12mm
TGP-110C : W138 x L142 x H175mm
TGP-120C : W138 x L142 x H332mm
Weight: 47g / 610g / 920g
Color: Black
Frequency: FSK/433.42MHz
Power Source: DC 9V/5A & LIPOLYMER battery (Rechargeable)
Adapter Input: 100-240V~, 50/60Hz, 1.5A MAX
Compatibility: Multi transmitter (TP-2000T) & Repeater (SRT-8200T)

Technical specifications

• Dimension: TGP-200R : W47 x L102 x H12mm; TGP-110C : W138 x L142 x H175mm; TGP-120C : W138 x L142 x H332mm
• Weight: 47g / 610g / 920g
• Color: Black
• Frequency: FSK/433.42MHz
• Power Source: DC 9V/5A and Rechargeable Li-Polymer battery (approx. 8 hours runtime on full charge)
• Adapter Input: 100-240V~, 50/60Hz, 1.5A MAX
• Compatibility: TP-2000T multi transmitter and SRT-8200T repeater
