Triaxial accelerometer MS2002+
capacitiveMEMSsmall

Triaxial accelerometer - MS2002+ - SYSCOM Instruments SA - capacitive / MEMS / small
Triaxial accelerometer - MS2002+ - SYSCOM Instruments SA - capacitive / MEMS / small
Add to favorites
Compare this product

Characteristics

Number of axes
triaxial
Technology
MEMS, capacitive
Other characteristics
small, rugged, seismic, IP65

Description

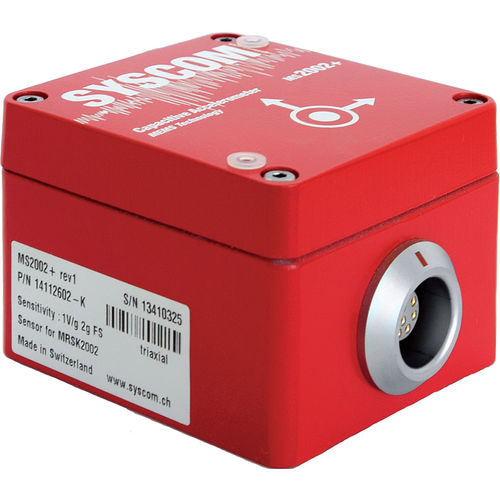

The MS2002+ is a triaxial accelerometer based on a micromechanical silicon chip, an ASIC for signal conditioning, and an EEPROM for storage of the calibration data. Its small dimensions, rugged and splash-proof design and excellent long term stability make the MS2002+ the perfect match for seismic monitoring in Nuclear Power Plants and in other safety applications. The MS2002+ from Syscom comes factory calibrated, equipped with a fully comprehensive self-test function and requires no re-calibration. Main features • Micromechanical capacitive chip • Protection: IP 65 • Measuring ranges: ± 1 g / ± 2 g / ±10 g • Sensitivity: 2 V/g – 1 V/g – 0.2 V/g • Frequency range: 0 to 150 Hz (accuracy ±1%) • Noise: typ. 18 μV/√Hz • Dynamic range: > 84 dB (DC to 50 Hz)

Catalogs

MS2002+
MS2002+
2 Pages
MRSK2002
MRSK2002
4 Pages
