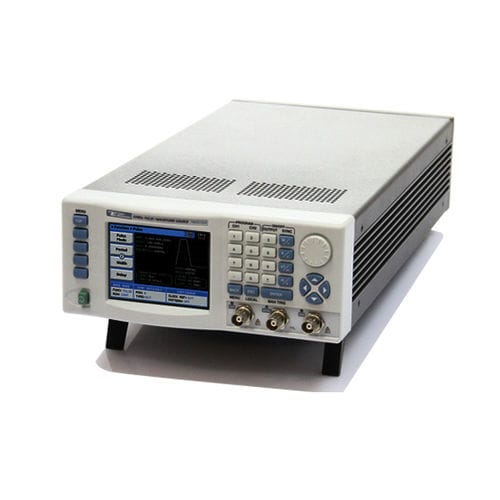

Pulse generator PM8572A

arbitrary waveformfunctionpattern

Model PM8572A is very high performance, dual channel pulse/pattern generator that stretch normal pulse generators` spec to the limit, becoming by far the most advanced pulse waveform generator available in the market. In addition to its high performance pulse features, the new PM8572A generate a complete array of standard, arbitrary and sequenced waveforms which are necessities in today`s laboratories. 100MHz Function Generator for standard waveforms 300MS/s, 16Bit Arbitrary Waveform / Sequence Generator 10ps pulse resolution with 4ns transition time 32Vpp into open circuit with programmable impedance 16-Bit Digital Pattern Generator with programmable level AM, FM, FSK, ASK, PSK, PWM and sweep Features Versatile Pulse Controls If your application requires more than just a fixed duty cycle or programmable pulse width, then you can modulate and control your leading edge with any standard or arbitrary waveform shape. Combine all of these features with external pulse width control and you have an extremely versatile pulse generation tool. Extremely Accurate Resolution Need to control pulse transitions and placement? Just program each channel to output pulses with linear or fast transitions and control edge placement with 10ps resolution. High Speed Function Generator Care to use the instrument as a function generator? No need to calculate complex waveforms because the PM8572A does the work for you. Select the standard waveforms tab and start generating any of ten waveforms that are pre-computed and available for immediate use. Included are: sine, triangle, square, pulse, ramp, sinc and others at frequencies up to 100MHz.
