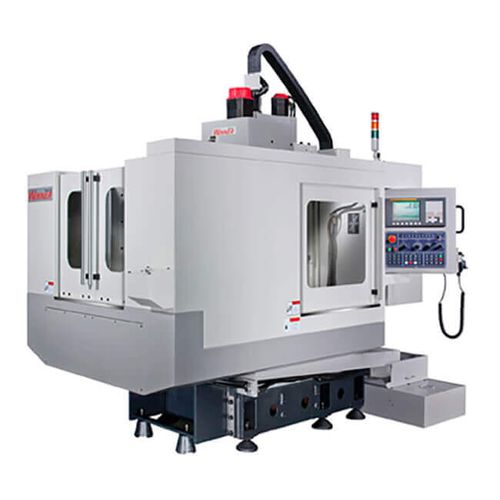

A space-saving, high-precision and high-performance two pallets change.
APC series with automatic pallet change can be applied to do complex machining such as milling, drilling, boring, reaming and facing operations etc.
Automatic Pallet Changers directly on the base; easy to install, good water resistance and to avoid waste of space.
APC (Automatic Pallet Changers) is best choice for precious modular production and product accuracy and machining high speed requirements
Table
Table size - mm - 600x400 * 2 pcs - 700x500 * 2 pcs
T slots - mm - 14x3x125 - 14x3x125
Travel
X/Y/Z - axis travel - mm - 500/400/300 - 600/400/300
Spindle nose to table surface - mm - 130~430 - 130~430
Spindle center to column - mm - 410 - 410
Spindle
Spindle taper - - - BT-30 - BT-30
Spindle speed - kg - @250 * 2 pcs - @250 * 2 pcs
Feed
X-Y-Z motor(Fanuc) - kw - 1.2/1.2/2.8 - 1.2/1.2/2.8
X-Y-Z motor(Mitsubishi) - kw - 1.5/1.5/2.0 - 1.5/1.5/2.0
X-Y-Z Rapid travel - m/min - 48/48/36 - 48/48/36
Rail Type
Rail Type - - - X,Y - Linearway, Z-Boxway - X,Y - Linearway, Z-Boxway
ATC System
Magazine type - - - Turret Type - Turret Type
Tool no. - pcs - 14T - 14T
Max.tool length - mm - 200 - 200
Max.tool weight - kg - 3 - 3
Tool to tool change time - sec - 1.8 - 1.8
