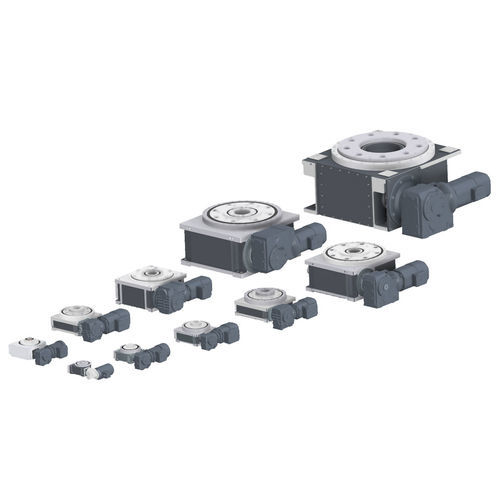

Rotary indexer RTX series

camfor heavy loadsprogrammable

Common applications The rotary indexer RTX is often used in the assembly technology, the testing technology, the welding technology, the printing, the pressing, the automotive industry, the microelectronics, the food industry, the medical and the cosmetic industry. Features and user benefits • Reliable, robust drum cam roundtable • for all applications • Construction diameter 100 mm – 285 mm • Fixed divisions 2 – 96 or flexible • through NC technology • Switching times of 0.16 s – 5 s • Gentle starting and stopping across • the switching cam • Large, vertically hollow shaft • Ideal for high loads • Standard accuracy 15" – 35" • Four-point mounting at the outer diameter • of the output flange • Maintenance free through oil bath lubrication • Stop operation, continuous operation or • reversing design possible • All installation positions possible
