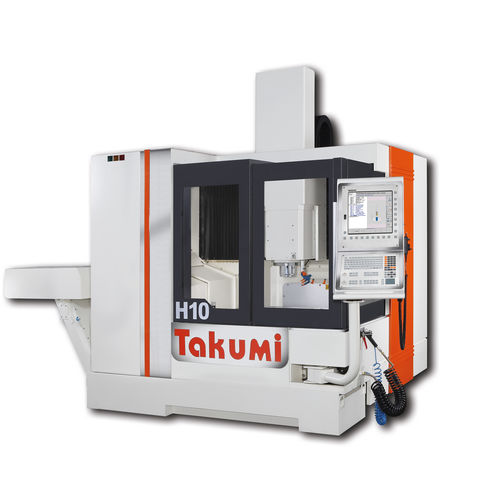

3-axis machining center H10
verticalgantryhigh-speed

Add to favorites

Compare this product

Go to the Takumi | HURCO Werkzeugmaschinen GmbH website for more information

Characteristics

Number of axes: 3-axis
Spindle orientation: vertical
Structure: gantry
Other characteristics: high-speed, high-precision, high-performance, rigid
X travel: Max.: 1,020 mm
(40 in)
Y travel: Max.: 700 mm
(28 in)
Z travel: Max.: 500 mm
(20 in)
Rotational speed: Max.: 15,000 rpm
(94,248 rad.min-1)
Power: Max.: 18.5 kW
(25.15 hp)

Description

3-Axis-CNC-machine center, for use in constructing and forming tools in aerospace technology or in the pharma industry. Extremely rigid and thermally stable, movable control panel. Ladder design of the bridge provides a greater support for the head casting; close proximity of spindle to bridge reduces overhang. Built for high quality performance and precision. Type of spindle: Direct-Drive/vertical Spindlespeed: 15000 rpm Motorpower: 18.5 kW Travel: X-Axis: 1020 mm Y-Axis: 700 mm Z-Axis: 500 mm each with 4.5 kW power and a travel of 32 m per minute of rapid traverse ACT-Type: Swing Arm Magazine capacity: 30 General information: Air requirements: 6-8 Bar Electrical power consumption: 50 kVA / 125 A Machine net weight: 9100 kg
