Coil coiler take-up

cablefor wiremotorized

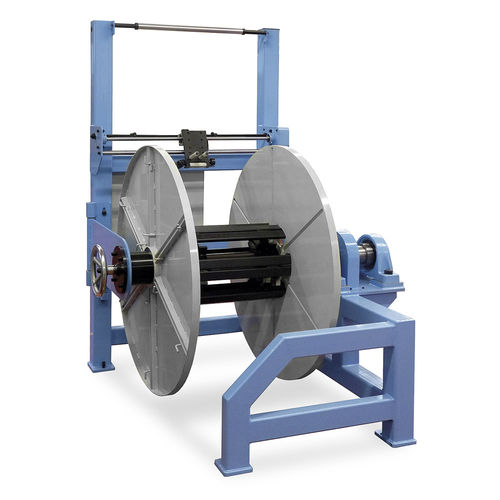

• Flange diameter: 1200 mm. • Diameter nucleous: 390 mm. • Capacity: 706.335 cm³. • Distributing system: by a uhing distributer box • Adjustable travese from 590 mm. up to 700 mm. • Adjustable pitch from 16 mm. up to 80 mm. • Take up tension: from 2 Kg. to 40 Kg. • Take up speed: from 40 m/h up to 340 m/h Ratera specializes in manufacturing take-up units (also called collectors) that work synchronized with the braiding machine or other equipment. The take-up units are used to collect the braided product on a spool or reel. In smaller braiders, the take-up unit is directly incorporated and welded onto the braider according to the customer’s needs. For larger braiders where there is a high capacity requirement, autonomous collectors are the most suitable option. Take-up units for parallel winding to metallic reels. They can work autonomously thanks to a motorized system and clutch mechanism. Space optimization and perfect parallel folding can be achieved thanks to its rolling-ring device with enables winding pitch selection. Several reel sizes are available: Ø 800 x 400 (150,796 cm³) Ø 1050 x 600 (444,142 cm³) Adapted to customer’s bobbin. (Wood, metallic, plastic, … ) All these collectors can be used with other types of machinery, such as twisters, caterpillars, cutters, or other types of textile or tubing machinery. Additionally, Ratera can support the integration artificial vision systems for quality control, thermal process or other types systems with our take-up units or braiding equipment
