Melting furnace RF-10chambertubulargas
Add to favorites
Compare this product
Characteristics
- Function
- melting
- Configuration
- chamber, tubular
- Heat source
- gas
- Atmosphere
- forced convection
- Other characteristics
- large-size, continuous, programmable, custom, high-productivity, high-volume, industrial, for metallurgy, for aluminum, for foundry applications, for copper, for non-ferrous metals
- Maximum temperature
Max.: 1,700 °C
(3,092 °F)Min.: 1,400 °C
(2,552 °F)- Width
370 cm
(145.67 in)- Height
250 cm
(98.43 in)- Depth
270 cm
(106.3 in)
Description

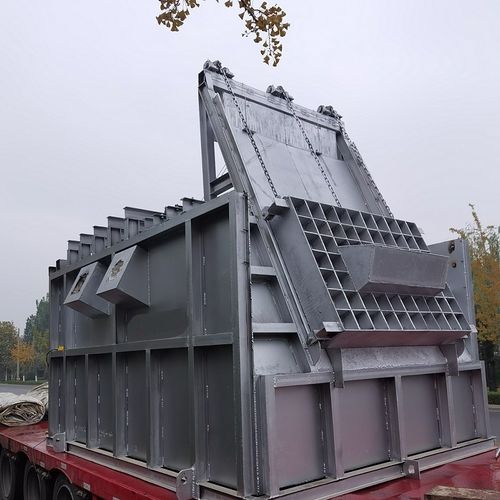

10 Tons Reverberatory Furnace Fired by Oil/Gas
Parameters:
1. Rated capacity: 10T
2. Equipped with high temperature resistant lifting furnace door: 700×800 (feed size)
3. Equipped with two 1,000,000 kcal burners
4. furnace temperature detection and alarm
5. Equipped with dust collecting hood at the door of the furnace
6. Equipped with exhaust type furnace door
7. Equipped with furnace bottom floor and channel steel reinforced support
8. The furnace door is easy to operate, tightly sealed, has long service life
9. enabling metal composition adjustment and sampling
10. heating, heat preservation, refining slag removal
11. Provide pure copper liquid to casting equipment
