- Isolation transformer
- TDK Electronics Europe

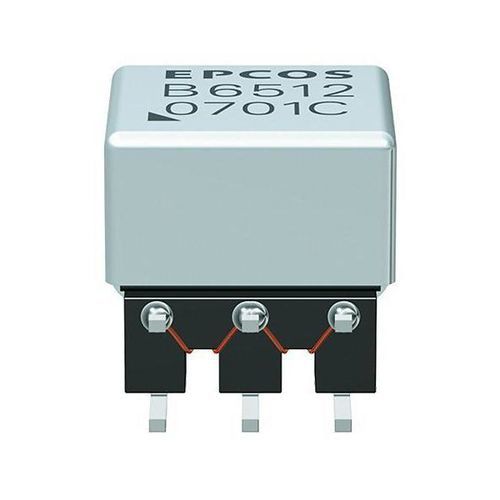

Isolation transformer EP6encapsulatedfor automotive applicationsfor sensors
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- encapsulated
- Applications
- for automotive applications, for sensors
- Electrical characteristics
- high-frequency
- Mounting
- SMD
- Other characteristics
- frequency, multi-winding, three-winding, with choke
- Primary voltage
Max.: 12 V
Min.: 5 V
- Secondary voltage
Max.: 180 V
Min.: 40 V
- Frequency
50,000 Hz
Description
Overview
Catalog entry for SMT isolated transformers intended for automotive ultrasonic sensor applications. Includes EP6 sample kit information, datasheet references and product resources for evaluation and design-in.
Data sheets (selection)
Core shape | Inductance nom. (mH) | Operating frequency (kHz) | Type
EP6 Sample Kit | --- | 50 | B78416X0001
Sample Kits
Ordering
Ordering No.: B78416X1 (sample kit identifier shown on the product page).
Technical specifications
Catalog entry for SMT isolated transformers intended for automotive ultrasonic sensor applications. Includes EP6 sample kit information, datasheet references and product resources for evaluation and design-in.
Data sheets (selection)
Core shape | Inductance nom. (mH) | Operating frequency (kHz) | Type
EP6 Sample Kit | --- | 50 | B78416X0001
Sample Kits
- EP6 Sample Kit: contains representative SMT isolated transformers from the EP6 family for evaluation and design-in.
- Typical turns ratio N1:N2:Np from 1:1:8.42 to 1:1:15.
- Inductance range L from 0.23 mH to 5 mH.
Ordering
Ordering No.: B78416X1 (sample kit identifier shown on the product page).
Technical specifications
- Core shape: EP6 (sample kit)
- Operating frequency: 50 kHz (listed for sample kit)
- Inductance (nominal): not specified for sample kit entries (individual components vary)
- Turns ratio range: N1:N2:Np from 1:1:8.42 to 1:1:15
- Inductance range: 0.23 mH to 5 mH
- Representative product family name: EP6 series (SMT isolated transformers)
