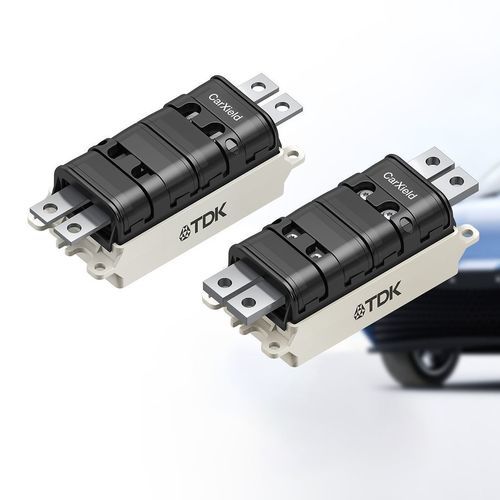

Low-pass electronic filter CarXield

passivefor invertersbusbar-mounted

Overview CarXield by TDK is a standardized EMC filter platform developed for automotive high-voltage DC inverter applications. It addresses EMI issues in e-mobility powertrains and is offered in multiple variants for use at 500 V DC or 1000 V DC with rated currents up to 400 A at +85 °C. Configurations are available with or without integrated busbar and can be adapted for specific inverter integration requirements.

Key features

• Standard EMI/EMC filter platform for automotive power electronics
• Target application: high-voltage DC inverters for xEVs
• Rated voltages: 500 V DC and 1000 V DC
• Rated current: up to 400 A (at +85 °C)
• Available with or without straight busbar terminals
• 2-line filter configuration
• Typical terminal option: straight busbar
• Example ordering series: B84252A*A, B84252A*Q, B84252B*A

Presentation - included topics

• Why an EMI filter in xEV architectures?
• CarXield: an innovative standard solution
• Technical characteristics and performance
• CarXield as a standard EMI filter for inverters
• Integration examples and mounting options
• EMC design hints provided in the data sheets
• Additional filter types and busbar installations

Data sheets (selection) Number of lines | Application | Rated current (A) | Rated voltage (V DC) | Type
2 | for high-voltage DC inverters | 200 | 500 | B84252A*A
2 | for high-voltage DC inverters | 200 | 500 | B84252A*Q
2 | for high-voltage DC inverters | 400 | 1000 | B84252B*A

Product Resources (documents and presentation) Presentation and a set of technical documents are available for CarXield, including application notes, cautions and warnings, general information, selector guide, EMC services information, symbols & terms and comprehensive technical data sheets and PDFs.

Technical specifications

• Platform / product name: CarXield
• Application: Power-line EMC filter for high-voltage DC inverters (automotive)
• Number of lines: 2
• Rated voltage: 500 V DC or 1000 V DC
• Rated current: examples up to 200 A and 400 A (variants available up to 400 A at +85 °C)
• Operating/qualification temperature example: +85 °C
• Peak current options (selector examples): 360 A (1 min), 650 A (1 min), 600 A (10 s), 1000 A (10 s)
• Typical dimensions (example): 155 x 59 x 50.5 mm
• Terminals / mounting: straight busbar (filters with or without busbar available)
• Product types / ordering series examples: B84252A*A, B84252A*Q, B84252B*A
• Available documentation: data sheets, application notes, selector guide, presentation and related technical PDFs
