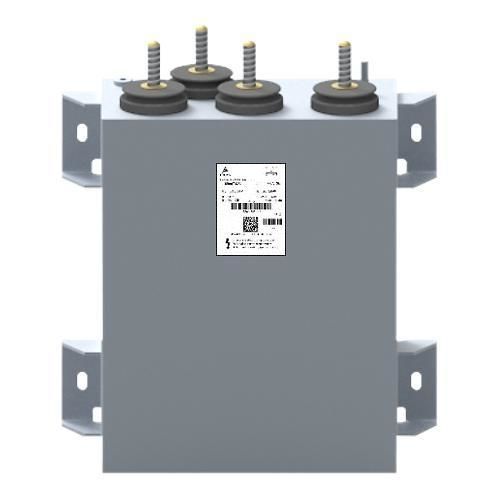

Polymer capacitor MKK HPmoduleencapsulateddry
Add to favorites
Compare this product
Characteristics
- Type
- polymer
- Configuration
- module, encapsulated
- Technical characteristics
- filter, power-factor correction, network filter, dry, AC, single-phase, three-phase
- Applications
- industrial, for power electronics, for inverters, for train
- Capacitance
Max.: 3,000 µF
Min.: 200 µF
- Voltage
Max.: 690 V
Min.: 230 V
Description
Product description
With the increasing importance of power quality, TDK focuses on AC filtering solutions. These modular capacitors are offered in single-phase and three-phase designs with various terminal configurations and electrical parameters. Customized mechanical and electrical designs enable compact layouts and high reliability adapted to system constraints. When used as AC filters, the capacitors reduce harmonic distortion and manage reactive power to improve overall power quality and system robustness.
Features
Benefits
Applications
Data sheets (selection)
Type | Application | Style | Phases | Rated capacitance (µF)
B25615A | AC Filtering, General purpose | MKK AC | 3 | 35 - 1435
B25610 | AC Filtering | MKK HP | 3 | 200 - 3000
Technical specifications
With the increasing importance of power quality, TDK focuses on AC filtering solutions. These modular capacitors are offered in single-phase and three-phase designs with various terminal configurations and electrical parameters. Customized mechanical and electrical designs enable compact layouts and high reliability adapted to system constraints. When used as AC filters, the capacitors reduce harmonic distortion and manage reactive power to improve overall power quality and system robustness.
Features
- Capacitance range: 3 × 200 to 3 × 3000 µF (examples); other ranges available (e.g. 35–1435 µF for B25615A)
- Rated voltage: 230 to 690 V AC
- Available terminal configurations
- Hot spot temperature up to +85 °C
- Encapsulated with polyurethane resin (dry technology)
- Stainless steel case
- Flat winding technology
- Standards: IEC 61071, IEC 61881-1
Benefits
- Fully customizable mechanical and electrical options for system integration
- Compact filtration solutions suitable for constrained installations
- Expected lifetime up to 200,000 hours at +85 °C hot spot
- Compatible with pressure-switch devices
- Designs suitable for aggressive environmental conditions
- ANSYS™ simulation support available on request
Applications
- Locomotive & EMU
- Industrial medium-voltage drives (MV)
Data sheets (selection)
Type | Application | Style | Phases | Rated capacitance (µF)
B25615A | AC Filtering, General purpose | MKK AC | 3 | 35 - 1435
B25610 | AC Filtering | MKK HP | 3 | 200 - 3000
Technical specifications
- Series/types referenced: MKK HP, MKK AC, B25610, B25615A
- Capacitance examples: 35 – 1435 µF (B25615A); 200 – 3000 µF (B25610)
- Rated voltage (AC): 230 – 690 V AC (general range); other RMS/peak values available
- Number of phases: typical three-phase modular variants
- Hot spot temperature rating: up to +85 °C
- Encapsulation: polyurethane resin (dry technology)
- Case material: stainless steel
- Winding: flat winding
- Relevant standards: IEC 61071, IEC 61881-1
- Design options: fully customized mechanical and electrical designs for compact filtration solutions
- Expected life: up to 200,000 hours at +85 °C (hot spot)
- Compatibility: pressure-switch devices; designs for aggressive environments
