CAD software QUALIFIER

qualityanalysissurface model

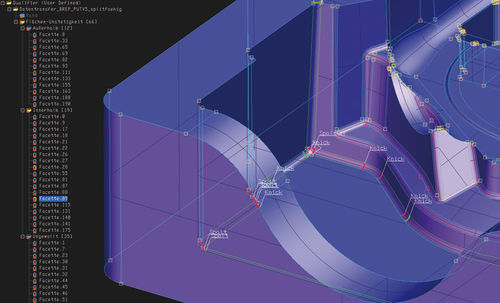

You use the Tebis Qualifier to evaluate surface models in order to ensure that the design quality complies with the subsequent design and manufacturing process steps. Individual analysis templates for your requirements and the clearly arranged display of the results will simplify your work. Thus you can remedy defects early. The automated analysis of the surface model can verify more than 30 different quality criteria. You decide on the relevant criteria by considering the tasks to be performed in subsequent process steps. For this purpose, you can store the required criteria in your personal analysis templates for repeated and standardized checks. The Tebis Qualifier displays the results clearly arranged in a structure tree. The corresponding problem areas in the part can thus be found quickly and easily. The structure tree serves as a convenient work and management tool when the surface model is revised. Some of the most frequent results of poor surface designs are: * Problems during data transfer to other CAD systems. * Problems during subsequent design using specific functions, such as offset, face calculation, component cut and automatic deformation
