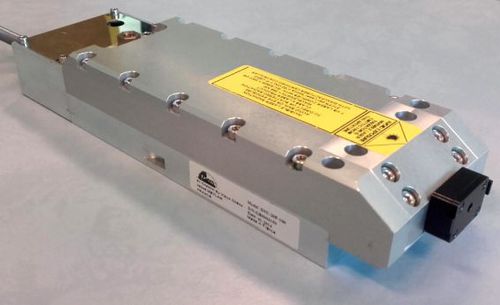

Q-switched laser head STU-01E-1x0
short-pulsetriggeredsolid-state

Q-switched laser head
Q-switched laser head
Q-switched laser head
Add to favorites
Compare this product


Characteristics

Operational mode
Q-switched, short-pulse, triggered
Technology
solid-state
Spectrum
UV
Applications
instrumentation, for Raman spectroscopy, for medical applications, LIDAR
Other characteristics
sealed, single longitudinal mode, air-cooled, Nd:YAG
Power

0.004 W, 2,000 W

Wavelength

266 nm

Description

The STU-01E is a triggered Microchip Series laser transmitting 266 nm radiation optimized for pulse duration, shorter than 400 ps. This laser produces 266nm pulses which are directly generated from the diode pumped passively Q-switched Nd:YAG microchip engine. A fourth harmonic generation stage produces the 266 nm radiation with a very good lifetime. Pulses can be controlled individually up to 4 kHz. The laser is single longitudinal mode. Microchip lasers are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while keeping constant operating parameters. KEY FEATURES > Family: MicroChip > Energy/Pulse: 1 µJ > Repetition rate: 4 kHz > Triggered: yes > Single frequency: yes > Linewidth: 0.3 pm > Pulse duration: 400 ps > Package: SNxII
