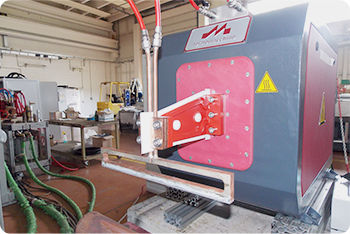

Induction heating generator MOSFET

induction heating generator
induction heating generator
Add to favorites
Compare this product


MOSFET GENERATORS Transistor generators ideal for High Frequency applications where surface heating is required. Use for surface hardening heat treatments, small parts heating, welding, brazing, etc MOSFET Generators are usually composed of a cabinet and a heating head. The insulation towards the network is obtained by placing a three-phase 50 Hz transformer placed before the generator. AVAILABLE SIZES: Frequency band 50-250 kHz up to 150Kw Powers above 500kW with frequencies up to 350kHz are obtained using a heating head for welding machine Parallel oscillating circuit Cos Φ > 0.9 Efficiency> 90% Siemens touch 7-inch HMI panel Profinet interface or contacts Siemens S7 1200 PLC IP54 protection Voltage or power regulation Low power test mode
