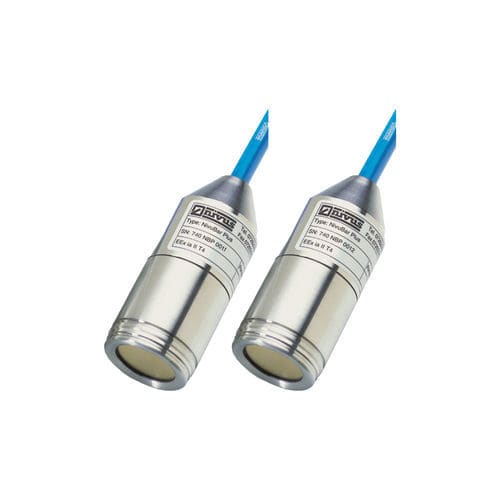

Capacitive level probe NIVUBAR PLUS II

hydrostaticfor waterfor wastewater

Submersible probe with integrated 4-20 mA transmitter for hydrostatic level measurement in water and waste water. With capacitive ceramic measuring cell without oil filling. This hydrostatic level probe is developed to meet the high demands of industrial and environmental protection. The stainless steel probe body is locked by a capacitive ceramic measuring cell at the bottom and is held by the selfsupporting cable on the top. The probe can be suspended e.g. on manhole walls by using a straining clamp. The non-corrosive enclosure with ingress protection IP68 (NEMA 6X) permits universal use for reliable determination of levels in containers, basins, pump stations and tanks. The extensive diaphragm has proven as very reliable, particularly in the sewage environment. The Ex-approval II 1G Ex ia IIC/IIB T4 is standard and the NivuBar Plus II therefore can be installed in all explosive surroundings. Utilising the widely used 2-wire technology, the installation costs are very low. Details Ceramic diaphragm Capacitive measuring cell 2-wire technology (output 4-20 mA @ 24 Vdc) Integrated overload protection Extensive, almost front flush diaphragm Ex approval for zone 0 as standard
