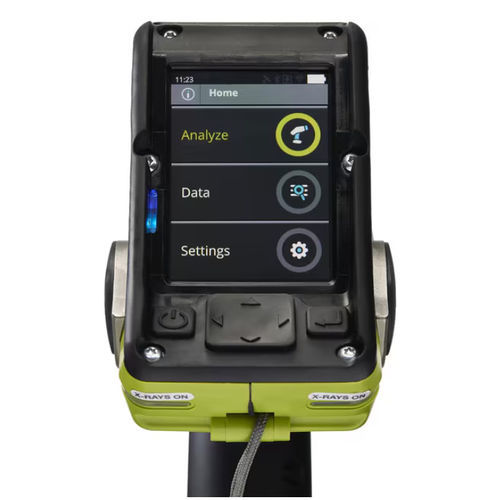

XRF analyzer Niton XL5e

metalfor plasticssolids

Product Overview
The Thermo Scientific Niton XL5e is a handheld XRF analyzer for rapid elemental analysis in field and shop environments. The unit combines a 5W X-ray tube, ergonomic design and modern software for reliable identification of metals, soils, minerals and plastics. Integrated connectivity and hot-swap battery capability support extended use in inspection, sorting and screening workflows.

Key Features

• 5W X-ray tube with Ag anode
• Lightweight design: 2.8 lbs (1.3 kg) with battery
• Integrated fan for thermal management
• Bluetooth and WiFi communications
• Micro camera for sample targeting
• Hot swap battery for continuous operation
• Color resistive touchscreen
• Password-protected user security
• IP54 rating (splash and dust resistant)

Applications

• Positive material identification and alloy verification in manufacturing
• Non-destructive field inspections and quality control
• Point-and-shoot sorting in scrap recycling
• Real-time geochemical analysis for mining exploration
• On-site heavy metal screening of contaminated soils

Available modes

• Light Metal Quick Sort (Scrap)
• General Metals
• Soil
• Mining
• Plastics

Specifications (summary)
Certifications/Compliance: CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010
Data Entry: Touchscreen keyboard, user-customizable entry, optional wireless barcode reader
Data Storage: 512 MB internal memory / 16 GB industrial storage (approx. 130,000 readings with spectra)
Data Transfer: WiFi, USB-C
Dimensions (L x W x H): 9.54 x 8.19 x 2.67 in (242.56 x 208.17 x 67.90 mm)
Display: Fixed color resistive touchscreen
GPS: Supported via optional external GPS (Bluetooth)
IP Rating: IP54
Languages: English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian
Libraries: Default alloy libraries (SAE, AISI, ASTM, AA, DIN, GB); user-customizable libraries
Operating Environment: -10°C to 50°C; 10%–90% RH non-condensing
Operating System: Linux
Optional Accessories: Portable test stand, mini test stand, hotwork stand-off, soil guard, Bluetooth printer
Power / Battery: 12V lithium-ion battery or 12V DC, 3A; hot swap functionality
Security Features: Password-protected user security
Software: NitonConnect PC software
Spot Size: 8 mm collimation
Standard Accessories: Locking shielded carrying case, two lithium-ion batteries, 110/220 VAC charger/adapter, check samples, safety lanyard, USB cable
System Details: Built-in standardization and health check
Weight: 2.8 lbs (1.3 kg) with battery
X-Ray Source: Ag anode, 6-50 kV, 0-500 µA, 5W max (tube voltage 50 kV)

Technical specifications

• Model name: Niton XL5e
• Weight: 2.8 lbs (1.3 kg) with battery
• Dimensions: 9.54 x 8.19 x 2.67 in (242.56 x 208.17 x 67.90 mm)
• Spot size: 8 mm collimation
• X-ray source: Ag anode, 6-50 kV, 0-500 µA, 5 W max (tube voltage 50 kV)
• Power: 12V lithium-ion battery or 12V DC, 3A; hot swap battery
• Data storage: 512 MB system memory / 16 GB industrial storage (≈130,000 readings with spectra)
• Connectivity: WiFi, Bluetooth, USB-C
• Display: Fixed color resistive touchscreen
• IP rating: IP54
• Operating conditions: -10°C to 50°C; 10%–90% RH non-condensing
• OS / Software: Linux; NitonConnect PC software
• Standard accessories: Carrying case, two batteries, charger/adapter, check samples, safety lanyard, USB cable
• Optional accessories: Test stands, hotwork stand-off, soil guard, Bluetooth printer
