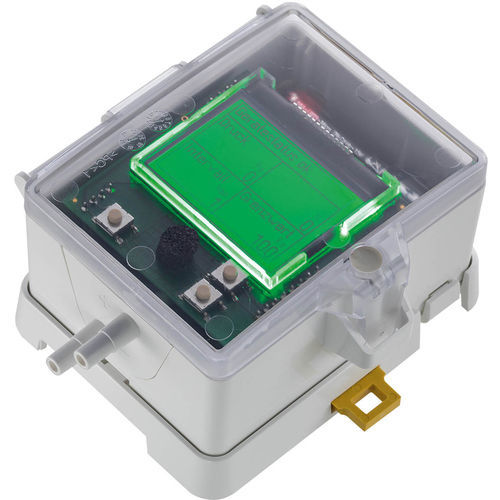

Differential pressure gauge DPGe

with LCD displaypanel-mountPVC

Compact electronic differential pressure manometer for displaying and monitoring differential air pressure in HVAC applications. Easy to retrofit in existing installations as the DPGe uses a AAA battery as a power supply. • Application/type : Differential pressure gauge • Purpose : Measure values • Measured values : differential pressure • Configuration : buttons • Operating range humidity : max. 85% rH short term condensation • Operating range pressure : max. 34 kPa • Accuracy pressure : ±1,5% of measuring range • Power supply : battery type AAA • Power consumption : max. 60 mW (operating mode), max. 1 mW (standby) • Display : LCD 29x35 mm, RGB backlight • Enclosure : USE-M, impact- and shock-resistant enclosure with quick-release cover, PC, UV-resistant • Colour : pure white, transparent cover PC • Protection (IP) : IP65, according to EN 60529 • Connection : connection tube: PVC, soft • Delivery content : incl. mounting set (screws and accessories), incl. pressure connection set and 2 m PVC connection hose, incl. battery type AAA • Packaging length (mm) : 152 • Packaging width (mm) : 128 • Packaging height (mm) : 65 • Packaging : case packaging • Device length (mm) : 85 • Device width (mm) : 65 • Device height (mm) : 45
