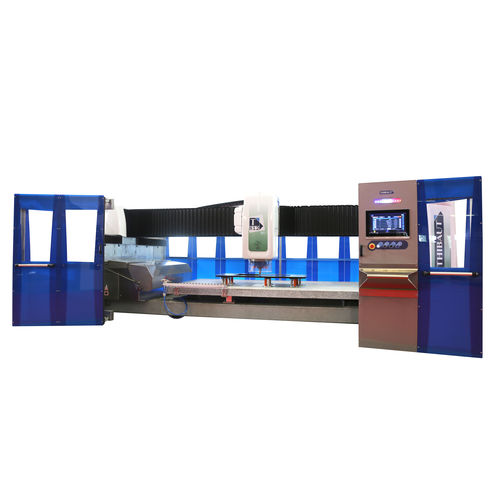

3/4-axis CNC machining center T812 V5
verticalfor stonefor ceramics

3/4-axis CNC machining center
3/4-axis CNC machining center
3/4-axis CNC machining center
3/4-axis CNC machining center
3/4-axis CNC machining center
3/4-axis CNC machining center
3/4-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3/4-axis
Spindle orientation
vertical
Machined material
for ceramics, for stone
X travel

3,380 mm
(133 in)

Y travel

1,600 mm, 2,000 mm
(63 in, 79 in)

Z travel

470 mm
(19 in)

Rotational speed

10,000 rpm
(62,832 rad.min-1)

Power

16.2 kW
(22.03 hp)

Work feed X-axis

40,000 mm/min
(26 in/s)

Work feed Y-axis

40,000 mm/min
(26 in/s)

Work feed Z-axis

15,000 mm/min
(10 in/s)

Weight

7,000 kg
(15,432.36 lb)

Description

Combining our 50 Years of extensive knowledge and experience in multifunctional machines and listening closely to our customers, we have launched our new Thibaut T812 V5 Machining Centre. The new design provides more efficient, versatile and user-friendly factors. Technical area with easy access/Linear tool magazine with a capacity of (L) 25 tools, (XL) 31 tools Galvanized frame:Quick-opening housing Touch-screen remot: control/Granite Working Table (L) 3375×1500 mm, (XL) 3375×1840 mm Pneumatic pressure:Safety Front Doors with Integrated 19″ console Electrical cabinet:Tool sensoring Device
