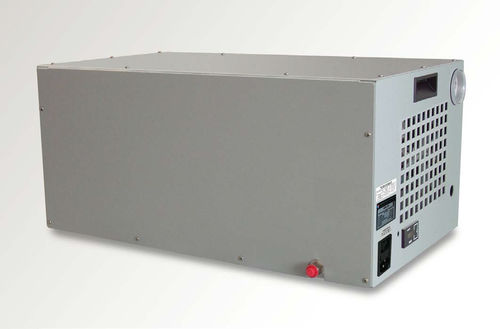

Air compressor ACS1210

electricportableoil-free

The ACS1210 is designed to be used as the air supply for a Model 1200 Humidity Generator. This is a fully enclosed compressed air supply incorporating a membrane style air dryer in a sound muffling cabinet. This system is ideal for in-lab use because of the low sound level at less than 65 decibels. FEATURES •175 psiG Oil-Less Air Supply •Dry Air To <-30 °C Ambient Pressure Dew Point •Sound level <65 db •Vibration Isolated Compressor •Membrane Air Dryer •10’ Air Hose Extension •On/Off Fuse Switch •8’ Removable AC Power Cord •Hour Meter •Indoor Use Only •Dimensions L 24” x W 14” x H 11.70” •Cabinet Weight Approximately 40 Lbs. PRINCIPLE OF OPERATION To provide the Model 1200 Humidity Generator with a clean, dry air supply and to give the laboratory a noise level that's acceptable for the lab technicians to carry on with their calibrations. SPECIFICATIONS The ACS1210 is an oil-less air compressor that can produce a pressure of 175 psi, at a maximum ambient air temperature of 30 °C, continuously for up to 500 hours before a minor maintenance service kit is required.
