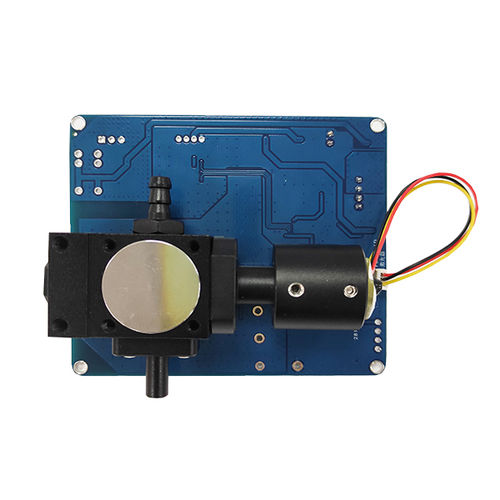

Indoor air quality sensor ZWIN-PMS06

outdoorPM10PM2.5

ZWIN-PM06 Sensor is an Atmospheric aerosol Sensors, independently developed by our company. It adopts the principle of laser scattering and can accurately detect and calculate the concentration of suspended particles in the per unit volume air with different particle sizes. It can realize the real-time output of the mass concentration value of PM2.5, PM10 and TSP. Highly stable ,high precision,long life span. Detecting principle: Light scattering method（full angle） Detecting range: 0~1000ug/m³（upper limit 30mg/m³① PM2.5 detecting accuracy: ≤100ug/m³：±10ug/m³ PM10 detecting accuracy: ≤100ug/m³：±10ug/m³ TSP detecting accuracy: ≤100ug/m³：±10ug/m³ Preset sampling flow rate: 1L/min Data refresh frequency: 1s Working condition: -30~70℃；5~95％RH Storage condition: -40~85℃；0~95％RH（free of condensation） Voltage: DC 12V±0.1V Electric current:＜500mA USB: RS485（Modbus） Size: W85*H85*D35 Life span:＞3 years
