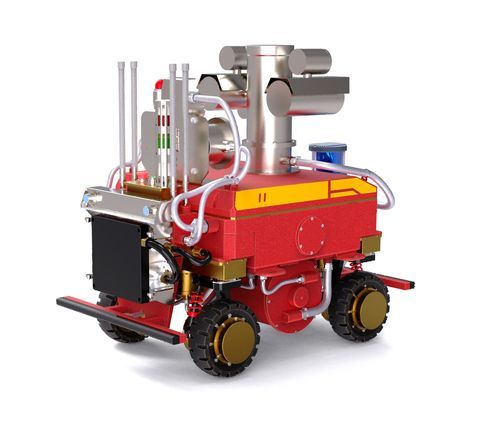

Remote-controlled robotic vehicle for the pharmaceutical industry

for the chemical industryfor harsh environmentsbattery-powered

Product
An explosion-proof inspection robot is an autonomous or remotely operated patrol platform designed for hazardous environments such as petrochemical plants, gas storage and transportation, coal mines and pharmaceutical workshops where flammable or explosive atmospheres may occur. Housed in an explosion-proof certified chassis and equipped with intrinsic-safety sensors and wireless telemetry, the robot acquires real-time data (video/images, temperature, gas concentration, noise) and transmits it to a control center. With autonomous navigation, intelligent recognition and early-warning alarms, it reduces the need for manual entry into high-risk zones, improving inspection efficiency and operational safety.

Application Scenarios

• Petrochemical industry
• Natural gas
• Power and electrical installations
• Coal mines
• Fire and emergency response

Technical Parameters
Basic design | Basic parameters

Technical specifications

• Remote-control distance: 50 m
• Operating speed: 0–7.2 km/h
• Full-load driving range: 35 km
• Minimum turning radius: 0 m
• Fording depth: 50 mm
• Maximum climbing angle: 10°
• Obstacle span (gap crossing): 150 mm
• Obstacle height (step climbing): 50 mm
• Protection rating: IP65
• Drive motors: 4 × 600 W DC servo motors
• Battery: 48 V / 50 Ah Li-ion with CAN bus
• Charging time: 3–4 h
• Charging methods: manual 48 V / 18 A charger or 48 V / 18 A wireless charging
• External power supply: 24 V / 15 A & 12 V / 15 A
• Braking method: electric motor brake
• Parking method: motor parking brake
