Programmable modular controller printed circuit board LTPP3

programmable modular controller printed circuit board
programmable modular controller printed circuit board
Add to favorites
Compare this product


for programmable modular controllers

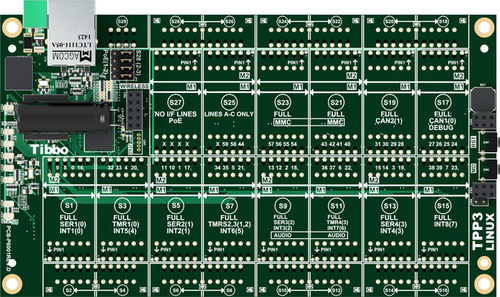

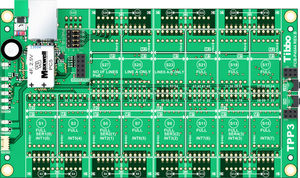

LTPP3 is a Linux-based Tibbo Project System (TPS) board with Ethernet, as well as optional Wi-Fi* and GPRS** connectivity. The board is based on a powerful 1GHz Cortex-A8 Sitara CPU and has four UARTs, as well as two CAN controllers. The LTPP3 is ideal for applications that require no human-machine interface (HMI) while calling for a significant number of I/O lines and/or functions. Offering 7 tiles for a total of 14 Tibbit module and 14 Tibbit connector sockets, the LTPP3 can be used to construct devices with up to 25 relays, or up to 47 opto-inputs, PWM outputs, open-collector outputs, or other I/O. Tibbo envisions a variety of use scenarios for the LTTP3. In one scenario, the board is purchased with an Embedded AggreGate license. Embedded AggreGate turns the board into a compact AggreGate server, thus allowing for rapid development and deployment of IOT applications. It is also possible to develop the board's software in node.js and, in the near future, in Tibbo BASIC/C (TiOS porting to Linux is currently under way). This product can be used as a bare board or assembled into a size 3 Tibbo Project Box (TPB3). The LTPP3 is supported by our Online Configurator allowing you to define and order a custom TPS device with Tibbits and options of your choice.


No catalogs are available for this product.

See all of Tibbo Technology‘s catalogs
